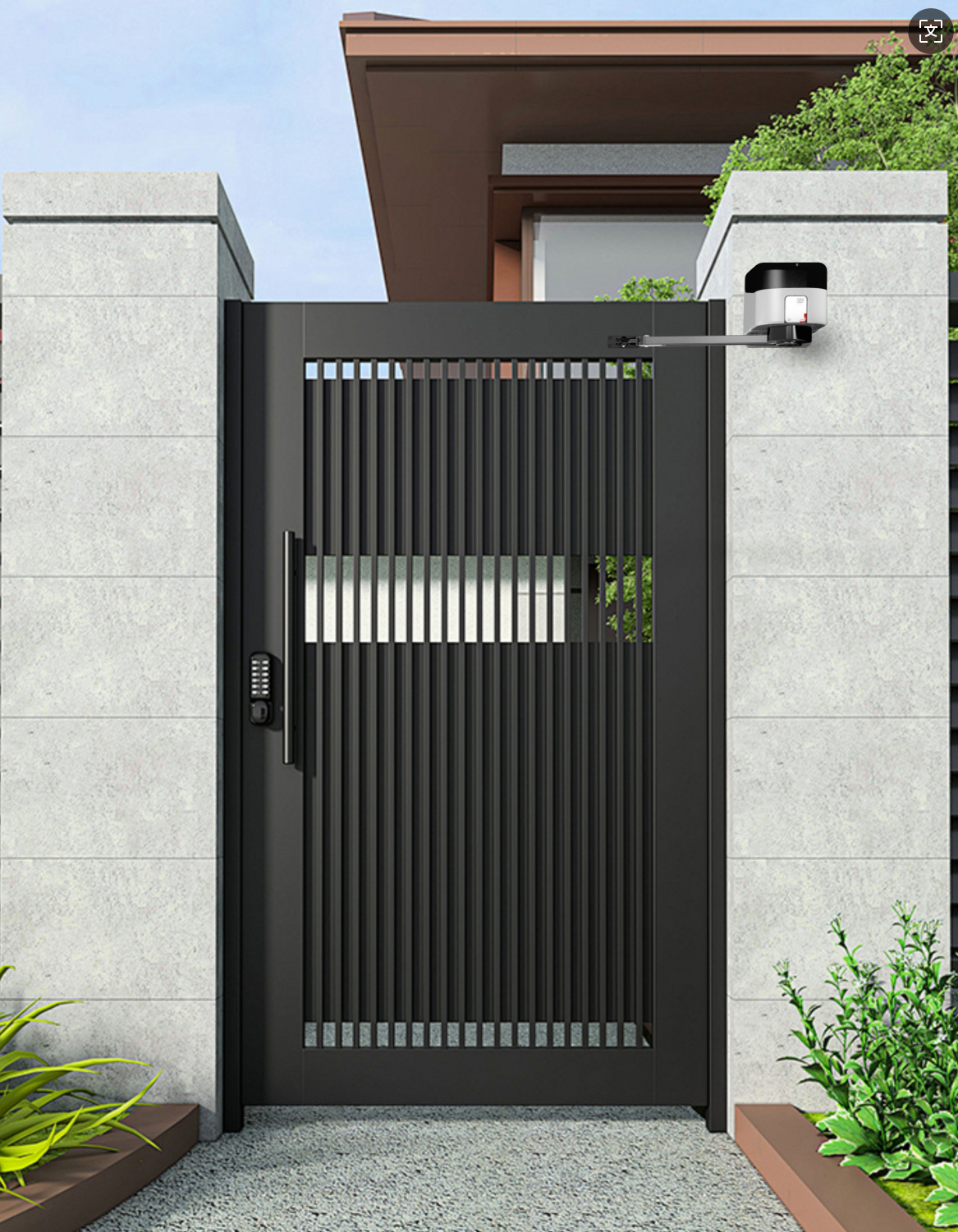

Waterproof Swing Door Opener Automatic Motion Sensor for Outdoor

• 1 H9 Outdoor Heavy duty Side Door Opener 24V DC power supply for outdoor personal safety protection
• 2 Energy saving static power less than 1W maximum working power only 60W
• 3 Independent adjustable opening and closing speed multi stage speed design for linear and stable operation
• 4 Ultra quiet work noise lower than 50db no disturbance to daily life
• 5 Support multiple signal input including relay signal and voltage signal flexible connection with other devices
• 6 Multiple motor protection over current overload short circuit fault and reverse power connection protection
• 7 Professional pedestrian protection obstacle rebound anti collision function support infrared human body induction input
• 8 Wide door type compatibility fit single double and mother son doors meet various courtyard door installation needs
• 9 485 communication support between two doors realize synchronous opening and closing of double doors
• 10 High environmental adaptability working temperature from -35 to 85 IPX4 waterproof grade
• 11 Rich parameter setting functions all working parameters can be customized according to actual needs
• 12 Convenient remote control 430Mhz frequency support learning up to 60 remote controls for multi user use

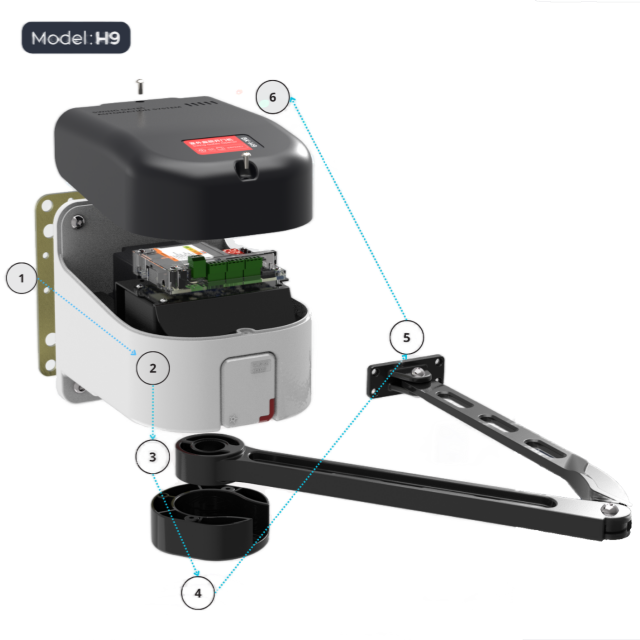

• 13 Compact and sturdy structure body size 215 161 180mm total weight about 8.5KG easy to install and fix
• 14 Built in Bluetooth module support mobile phone intelligent debugging and operation via dedicated mini program
• 15 Complete accessories package include 2 remote controls installation screws and arm kit for one stop installation
• 16 Intuitive operation clear controller buttons and screen display easy parameter debugging and status checking
• 17 Buzzer prompt function for all operations clear voice feedback for remote control learning and parameter setting
• 18 Power off parameter memory function no need to reset parameters after power on again
• 19 Multiple lock type compatibility support electromagnetic lock electric plug lock and mechanical lock
• Product electrical parameters:

  Input voltage: 220V ± 10%, 50HZ	Power supply: 160W
  Motor voltage: 24V	Rated power of motor: 60W
  Static power of the device: ≈ 1W	Motor speed: 1800RPM
  Reduction ratio: 210/1	Output torque: 78N · m
  Longitudinal kilogram force: 7.73KG · m	Remote control frequency: 430MHz
  Bluetooth specification: BLE low-power Bluetooth	Electric lock port output current: 1.2A [supports 2 280KG magnetic locks]
  Working temperature: -35 ℃ -85 ℃	Access control port output current: 0.8A [Face recognition device requires separate power supply]
  Operating humidity: 30% to 80% (no condensation)	Remote control distance: ≈ 15M [interference free state]
  Door opening and closing speed: adjustable from 3-6S	Traffic light voltage: 12V [positive]
  Waterproof rating: IPX4, waterproof and splash proof

  Product Specifications

  Specification parameters: 215 × 161 × 180mm	Arm size: 350mm
  Axis distance from wall dimension: 145mm	Outer dimension of shaft distance: 70mm
  Expansion screw hole spacing: 147 × 125mm	Door leaf base size: 70 × 20mm
  Outer packaging size: 468 × 2746 × 247mm	Total weight of the product: ± 8.5KG

  Accessories List:

  Door body of door opener: 1 set	Arm bag: 1 set
  Screw package: 1 set	Warranty card: 1 card
  Instruction manual: 1 copy	Remote control: 2 pieces
