22HP 0.7~1.3MPa Oil Inject Screw Compressor

22HP 0.7~1.3MPa Oil Inject Screw Compressor

22HP 0.7~1.3MPa Oil Inject Screw Compressor
22HP 0.7~1.3MPa Oil Inject Screw Compressor
Categories Oil Injected Screw Compressor
Brand Name: AIRERA
Model Number: AGCD-22D C
Certification: ISO、CE、TUV
Place of Origin: made in China
MOQ: 1 unit
Price: Negotiable
Payment Terms: TT/LC,Western Union,D/P,D/A
Supply Ability: 2,000-3,000 per month
Delivery Time: 5-15 days
Packaging Details: wooden case
Cooling air flow（m3/hr）: 7800
Application: Medical, Pharmaceutical, Food Processing
Oil Content: Oil inject
Working Pressure: 0.7-1.3Bar
Cooling type: Air cooling
Driven type: Direct driven
Contact Now
Company Info.
Shanghai Bestcomp Compressor Co., Ltd
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

22HP 0.7~1.3MPa Oil Inject Screw Compressor

AIRERA 22HP Oil-Injected Screw Compressor (0.7~1.3MPa)
The AIRERA 22HP series is the ultimate versatile solution for industrial applications requiring stable pressure between 0.7MPa and 1.3MPa. Whether you need standard pneumatic power or high-pressure precision, this compressor delivers consistent airflow with the rugged reliability that defines the AIRERA brand.
Key System Advantages
Electric Motor System
Only electric motors from well-known manufacturers of protection class IP55/IE3&4 are used. As a standard, the drive motors are monitored both thermally (via the thermistor of the motor) as well as electronically (overload protection via the frequency inverter).
AIRERA 22HP screw compressor electric motor system
Air End Block - Reliable Centerpiece - Design in Germany
The centerpiece of the compressor is the air end, which is constructed and manufactured with the most modern production methods in Germany. The optimal air end for your compressor can be used on a modulating basis. In frequency-controlled units, where the operating pressure changes, adjustments can also be made on the frequency controller to optimally adjust the speed of the compressor to the compressor performance.
AIRERA screw compressor air end block design
Drives and Electrics
The almost loss-free power transmission guarantees reliable, high-performance compressor operation. The regular maintenance requirement is reduced to lubrication of the motor. All the electronic components are brand products of leading manufacturers.
AIRERA compressor drive and electrical components
Technical Specifications - 22kW Air Cooling Compressor
ITEMUNITMODEL AGCD-22
Free air deliverym³/min3.6~2.4
Max. working pressureMPa0.7~1.3
Compressor type
Oil inject screw compressor
Cooling type
Air cooling
Driven type
Direct driven
Inlet status - Temperature℃≤45
Inlet status - PressureMPaAtmospheric pressure
Inlet status - Relative humidity
≤90%
Noise LeveldB(A)≤72
Residual oil contentppm≤2
Drive rotor speedrpm2940
Compressed air outlet temperature℃Ambient temperature＋10
Cooling air flowm³/hr7800
Control mode
Intelligent controller
Safety valve set pressureMPa0.77 ~ 1.43
Lubricating oil volumeL15
Compressed air outlet connection
G1
Dimension - Lmm1300
Dimension - Wmm850
Dimension - Hmm1260
Net Weightkg470
Motor - Model
Y2180M3-2
Motor - Speedrpm2940
Motor - Rated PowerKW22
Motor - Service factor
1.2
Motor - Efficiency
IP55
Motor - Startup mode
Y-Δ starting
Motor - VoltageV380 (Special on request)
Motor - FrequencyHz50 (Special on request)
Motor - Rated currentA42.2
Motor - Weight of motorkg173

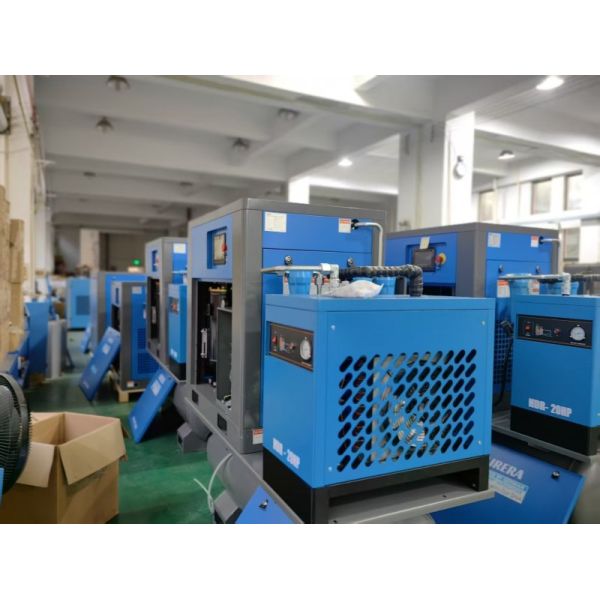

AIRERA 22HP oil-injected screw compressor complete unit
Frequently Asked Questions
Q1: How is the air-oil separation handled at higher pressures?
A: Higher pressure can challenge standard separators. AIRERA uses a high-efficiency three-stage separation system. This ensures that even at 1.3MPa, the compressed air remains clean with minimal oil carryover (less than 3ppm), protecting your downstream equipment.
Q2: Can I use this machine if my factory currently needs 0.8MPa but might need 1.2MPa in the future?
A: This is the perfect choice for you. The AIRERA 22HP series offers excellent future-proofing. You can run it at 0.8MPa today with high energy efficiency and simply adjust the settings if your process requirements increase in the future.
