Computerized Small Metal Slant Bed CNC Lathe Machine TCK40 High Precision

TCK40 High Precision Small Metal Slant Bed CNC Lathe Machine

Description:

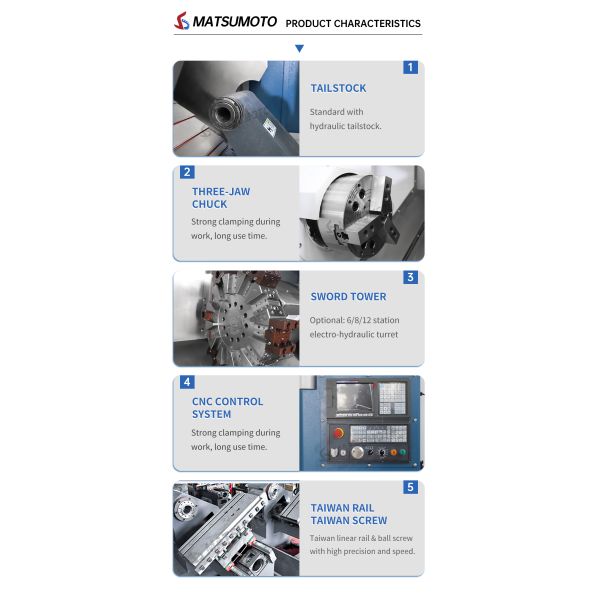

The TCK40 is a high-precision, compact CNC slant bed lathe engineered for efficient machining of small-to-medium shaft, disc and sleeve parts. Adopting a 45° integral cast iron bed (HT300 material) with resin sand casting process, it features a reasonable internal rib layout, delivering exceptional rigidity, vibration resistance and thermal stability. Equipped with imported high-precision linear roller guides and C3-grade ball screws, the lathe ensures smooth movement, low friction and precise positioning, with a repeatability of ±0.003mm
Product
Unit
TCK40
Processing range
Max. swing over bed
mm
350
Max. processing diameter(axis/chuck)
mm
150/280
Max. processing length
mm
350
Max. bar diameter
mm
40
Travel
X axis travel
mm
700
Y axis travel
mm
320
Spindle
Out put power
kw
4
Spindle end form
/
A2-5
Spindel speed
m/min
0-3000
Spindle bore diameter
mm
48
Chuck
Pneumatic/Hydraulic chuck
Chuck(optional)
Tail Stock
Tail stock sleeve diameter/travel
mm
/
Tail stock sleeve taper hole
Morse
/
Guide Rail Screw
Guide rail specifications
mm
30
Screw specifications
mm
2510/3210
Speed
Fast moving speed(X/Z)
m/min
20/24
Cutting feed speed
mm/min
1-8000
Tool Post
Tool post form
/
Row tool
Blade size
mm
20
Tool capacity
set
8
Max.boring tool diameter
mm
20
Machine Accuracy
Positioning accuracy(X axis)
mm
0.006
Positioning accuracy(Z axis)
mm
0.008
Repeat positioning accuracy(X axis)
mm
0.004
Repeat positioning accuracy(Z axis)
mm
0.004
Others
Distance from the ground to the centerline of the spindle
mm
105
Volume of cutting fluid tank
L
60
Overall dimension
mm
1600*1400*1600
Gross weight
kg
1200
