Manual Type U18C Linear Actuator Solar Tracker Adjustment Component

Categories Solar Tracker Linear Actuator
Brand Name: TOMUU
Model Number: U18C
Place of Origin: Guangdong, China
MOQ: Contact Supplier
Price: $32-45 / piece
Payment Terms: T/T
Supply Ability: 1000pcs /day
Delivery Time: 30days
Rated Load (N) Pull: 5,000N
Max. Load (N): 12,000N
Max. Static Load(N)When fully retracted: 20,000N
Stroke(mm): 100-800mm
Min. Installation Dimension: +250mm±2mm
Salt Spray Test: 600H
Ambient Temp.: -40°~+65°
IP Protection: IP65
Speed: 2.1mm/r±5%
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Manual Type U18C Linear Actuator Solar Tracker Adjustment Component

Manual Type U18C Linear Actuator
Solar tracker adjustment component designed for precise positioning of photovoltaic panels in residential and commercial solar tracking systems.
Product Overview
The U18C manual linear actuator serves as a core adjustment component for solar tracker systems. Featuring high-strength mechanical structure and manual control mode, it enables accurate angle positioning of solar photovoltaic panels. Ideal for residential, commercial, and small-scale solar tracking applications, as well as mounting bracket adjustments.
U18C Manual Linear Actuator for Solar Tracker Systems
Technical Specifications
ParameterSpecification
Max Load5000N
Speed1.4mm/r ±5%
Protection ClassIP65/IP66/IP67
Stroke100-800mm
Salt Spray Test600H
Product Dimensions
U18C Linear Actuator Dimensions and Measurements
Key Advantages
  • Lightweight and compact structure saves installation space
  • Labor-saving manual adjustment design
  • High load bearing capacity to support solar panel stable placement
  • Corrosion resistant material adapts to outdoor wind, rain, and sunlight exposure
  • Easy installation without complex wiring requirements

Engineering Notes

This manual linear actuator is designed for north-south adjustment in solar tracker systems.

In some solar power stations, seasonal angle adjustment is only required a few times each year. Compared with fully motorized structures, manual adjustment may help reduce project cost and simplify maintenance.

This type of actuator is commonly used in solar tracker applications where:

  • adjustment frequency is low
  • long-term outdoor operation is required
  • simpler maintenance is preferred

With a maximum load capacity of 12,000N, it can also be used together with manual or electric adjustment tools for seasonal angle adjustment in solar tracker systems.

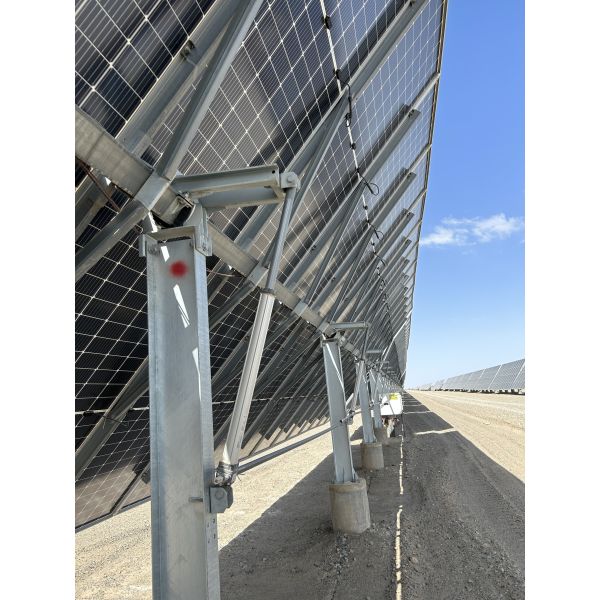

Project Application

manual-linear-actuator-solar-tracker-adjustment.jpgmanual-linear-actuator-solar-tracker-adjustment.jpgmanual-linear-actuator-solar-tracker-adjustment.jpg
