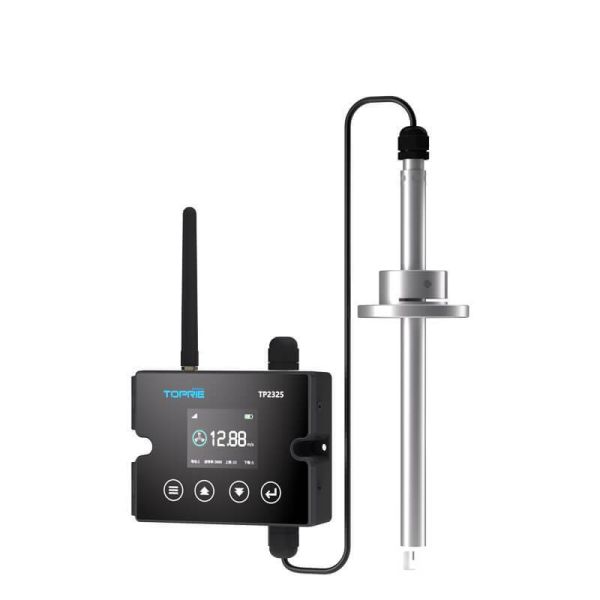

Name: Lab Air Speed Sensor Split Type Wind Speed Sensor Hot Air Duct Anemometer
Brand: TOPRIE
Price: 90.00 USD

Home >

Lab Air Speed Sensor Split Type Wind Speed Sensor Hot Air Duct Anemometer

Categories	Air Speed Sensor
Brand Name:	TOPRIE
Model Number:	TP2325
Certification:	CE，ROHS
Place of Origin:	China、
MOQ:	1 piece
Price:	USD 90.00~ USD 110.00 per piece
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	100 pieces per day
Delivery Time:	5-8 work days
Packaging Details:	Packed in paper box
keywords:	Anemometer
range:	0-30m/s
accuracy:	±3%
Communication:	RS485,LoRa,4-20mA
Protocol:	Modbus RTU,Modbus TCP
Color:	Black
Power supply:	DC8V~28V
Material:	ABS+metal
Display:	2'' LCD touch screen
Dimension:	1108332mm
OEM:	Available
Warranty:	12 months

Contact Now

Add to Cart

Company Info.

SHENZHEN TOPRIE ELECTRONICS CO.,LTD.

Verified Supplier

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Key Features & Advantages

High Sensitivity Design: Utilizes hot-film wind speed chip technology for precise measurements
Dust-Proof Construction: Reduces sensitivity to dust and contaminants, lowering maintenance costs
Long-Term Stability: High-stability resistive materials maintain consistent performance
Temperature Compensation: Dedicated temperature-measuring resistor design minimizes drift
Multi-Protocol Support: RS485, LoRa, and 4-20mA output options
Wide Operating Range: Functions in temperatures from -30℃ to 60℃

±3%
Accuracy
32-bit
Processor
IP65
Protection

Core Technology

Equipped with advanced technology for reliable performance:

32-bit High-Speed Microprocessor: Strong data processing capability and excellent real-time performance
Dual Model Support: TP2324 (0-25m/s) and TP2325 (0-30m/s) variants available
Precision Analog Output: 4-20mA output with ±0.1% accuracy
Advanced Display: 2.0-inch LCD screen with real-time data visualization
Robust Communication: Supports MODBUS protocol for seamless integration

Technical Specifications

Parameter	Specifications
Communication Method	Signal output: RS485, LoRa, 4-20mA
Power Supply	DC 8-28V, 1A
Wind Speed Measurement	Measurement range: • TP2324: 0~25m/s • TP2325: 0~30m/s Measurement accuracy: ±3%
Analog Output	Output range: 4~20 mA Output accuracy: ±0.1%
Display	Screen: 2.0-inch LCD Display content: Real-time wind speed, LoRa signal, basic configuration parameters (baud rate), device address, alarm limits
Environment	Operating environment: • Temperature: -30℃ ~ 60℃ • Humidity: 0 ~ 80% RH, no condensation Storage environment: • Temperature: -25℃ ~ 70℃ • Humidity: 0 ~ 90% RH, no condensation
Hardware Performance	• Power supply: DC 8~28V • Display: 2.0-inch LCD • Controls: Touch control buttons • Protection rating: IP65 • Fire rating: V0 • Housing material: ABS • Weight: 300g • Dimensions: 110×83×32mm
Software Performance	• TYPE-C firmware upgrades • Real-time LCD data display • Bluetooth, TYPE-C, and touch button parameter settings • RS485 communication with MODBUS protocol • LORA interval reporting • Upper and lower limit alarms • Wind speed correction

Application Scenarios

HVAC Systems

Air flow monitoring

Filter Monitoring

Pressure drop measurement

Power Plants

Flue gas treatment

Aviation

Pipeline air flow

Textile Industry

Process ventilation

Pharmaceutical

Clean environments

Laboratories

Biological safety

Agriculture

Livestock breeding
