Rugged industrial compact Embedded computer mini box PC

Categories Embedded Industrial PC
Brand Name: ITD/OEM
Model Number: ITD-MNPC-xxxxxx-M1204
Certification: CE, FCC, RoHS
Place of Origin: China
MOQ: 1PCS
Price: TBA
Payment Terms: T/T,PayPal(173515844@qq.com)
Supply Ability: 10000PCS/Month
Delivery Time: 7-10 Business Days
Packaging Details: 1-5pcs/CTN, Safe, Firm, suitable for international shipping
Power supply: DC12V,DC 24V, DC9-36V,
CPU: Intel J6412,J1900,i3,i5,i7,N97
Operating temperature: -20℃~70℃
OS supported: Win 10/ Win 11
Construction: Die-Casting Aluminum Chassis
Dimension: 145.0 × 126.0 × 59.0 mm ( W × D × H)
Mounting: Wall Mount (Default),Din Rail (Mounting Clip optional)
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

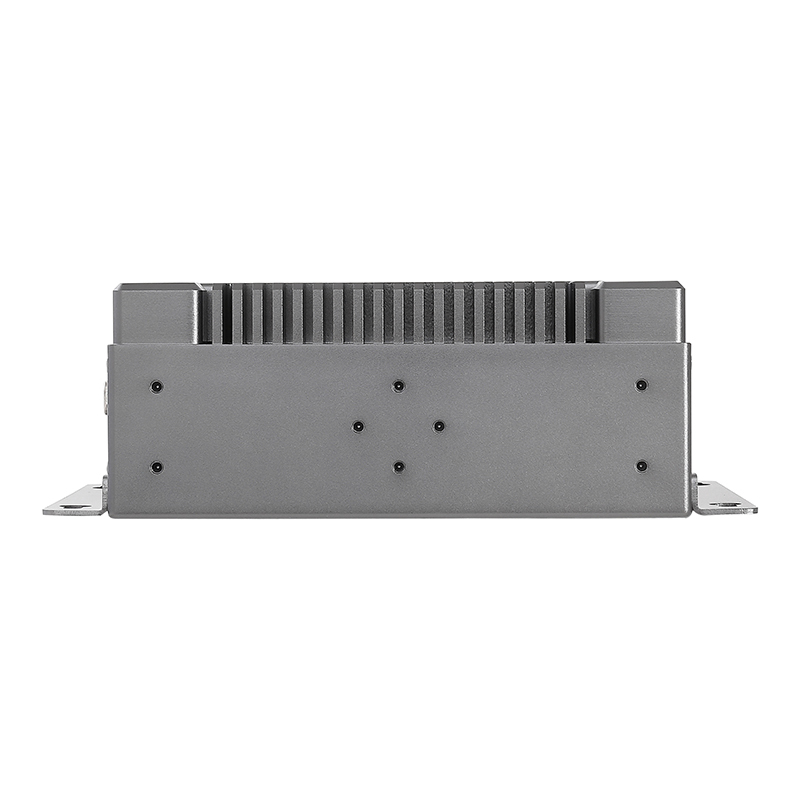

Rugged industrial compact Embedded computer mini box PC

Rugged industrial compact Embedded computer mini box PC
Product Overview

In the era of Industry 4.0, industrial compact embedded computers have emerged as the backbone of smart manufacturing, edge computing, and IoT ecosystems. Designed for harsh industrial environments, these devices combine high reliability, compact form factors, low power consumption, and rugged adaptability, serving as the "central nervous system" of modern automation systems.

Key Features

1.Rugged & Compact Design


Fanless, all-metal construction with ultra-compact dimensions (e.g., 190×130×50mm) enables seamless integration into cabinets, mobile robots, or confined spaces.


2.Performance-Power Balance


Powered by 4th–12th Gen Intel Core processors , these systems support multi-core parallel computing and AI acceleration (NPU) for tasks like machine vision and motion control.


3.Rich I/O & Modular Expansion

  • Industrial-grade interfaces include Gigabit Ethernet, USB 3.0, RS232/485, CAN bus, and GPIO, with optional 4G/5G, Wi-Fi 6, and Bluetooth for wireless connectivity.


Specifications

System


Model

ITD-MNPC-xxxxxx-M1204

Processor *1

lntel® J6412, N97 & 4th~12th Gen U-Series CoreTM i3/i5/i7

Memory *2

The memory type is determined by the CPU model

Ethernet

2 × GbE RJ45 intel i210-AT (Optional 4× LAN)

I/O Port

4 × USB3.0, 2 × USB2.0 ( Internal PIN Header)

1 × DB-9 COM1/2 RS-232/485/422

1 × DB-9 COM3/4 RS-232 ( Optional 2×CAN )

1 × Audio Line-out/Mic-in

1 × Remote Switch Phoenix

1 × AT/ATX Switch

1 × Clear CMOS Button

1 × SIM Card Slot

1 × HDMI

1 × VGA

1 × Power Button with LED

8 × GPIO ( 4×input, 4×output )

Storage *3

1 × M.2 2280 SSD ( SATA/NVMe )

1 × mSATA

Expansion Slot

Mini-PCle × 1 Full Size with SIM Card for WIFI/BT

3G/4G

M.2 Key B × 1 for 5G

Watchdog timer

255 Levels

Indicator

System LED

Storage Active LED

System Temperature LED

OS Support

Windows® 10/11,Linux

Mechanical


Construction

Die-Casting Aluminum Chassis

Mounting

Wall Mount (Default),Din Rail (Mounting Clip optional)

Dimension

145.0 × 126.0 × 59.0 mm ( W × D × H)

Gross Weight

TBD

Environmental


Operating Temperature

-20℃~70℃

Storage Temperature

-30℃~85℃

Storage Humidity

10~90%@30℃, non-condensing

Power Supply


DC Input

DC 9~ 36V 2-pin Phoenix Connector

Product Images


10.1 inch industrial touch panel PC in industrial environment
