Energy-Saving 3kW Three-Phase Waterproof High Efficiency AC Induction Motor

Energy-Saving 3kW Three-Phase Waterproof High Efficiency AC Induction Motor

Energy-Saving 3kW Three-Phase Waterproof High Efficiency AC Induction Motor
Energy-Saving 3kW Three-Phase Waterproof High Efficiency AC Induction Motor
Categories 3 Phase Induction Motor
Brand Name: ZOZHI
Model Number: MS112M2-4
Place of Origin: CHINA
Protection Grade: IP23/IP44/IP54
Efficiency: ≥IE2
Rated Output: 0.12KW-315KW
Rated Voltage: 220V/380V/440V/550V/660V
Mounting Type: IMB3/IMB5
Rated Speed: 750-3000r/min
Rated Frequency: 50Hz/60Hz
Phase: 3
Contact Now
Company Info.
Fuan Zhongzhi Pump Co., Ltd.
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Energy-Saving 3kW Three-Phase Waterproof High Efficiency AC Induction Motor

ZOZHI 380V/440V Three-Phase IE3 Efficiency Waterproof Flange Mount Asynchronous Motor
Energy efficient three-phase induction motor rated at 11KW with 1460RPM and IP55 waterproof protection. Designed specifically for pressure washers and demanding industrial applications.
Product Overview
ZOZHI 112m-4 4kW/5.5HP three-phase waterproof efficient flange mount AC motor. This IE2 standard industrial motor is engineered for demanding applications including pumps, fans, and continuous operation industrial equipment. Features aluminium housing and reliable three-phase induction design.
Key Features
  • Product Name: 3 Phase Induction Motor
  • Operating Humidity: ≤90%
  • Insulation Class: F/H
  • Noise Level: ≤75dB
  • Mounting Type: IMB3/IMB5
  • Rated Speed: 750-3000r/min
Technical Specifications
Product Name3 Phase Induction Motor
Rated Frequency50Hz/60Hz
Rated Speed750-3000r/min
Motor TypeInduction
Rated Output0.12kW-315kW
Protection GradeIP23/IP44/IP54
Ambient Temperature-15℃-40℃
Cooling MethodIC411
Mounting TypeIMB3/IMB5
Phase3
Rated Voltage220V/380V/440V/550V/660V
Product Gallery

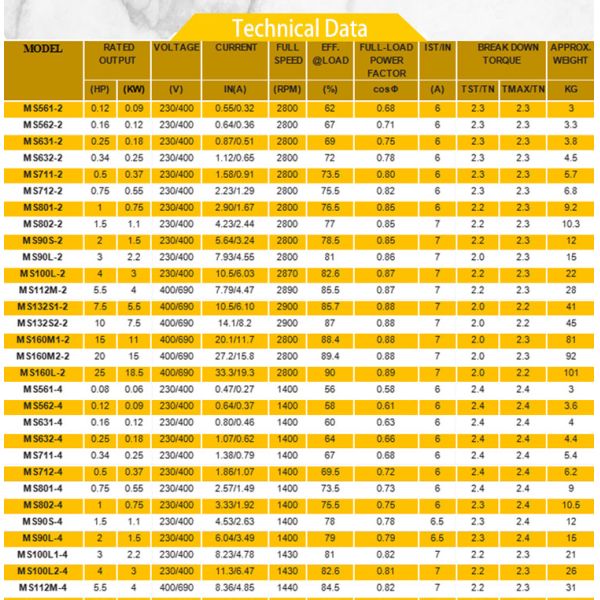

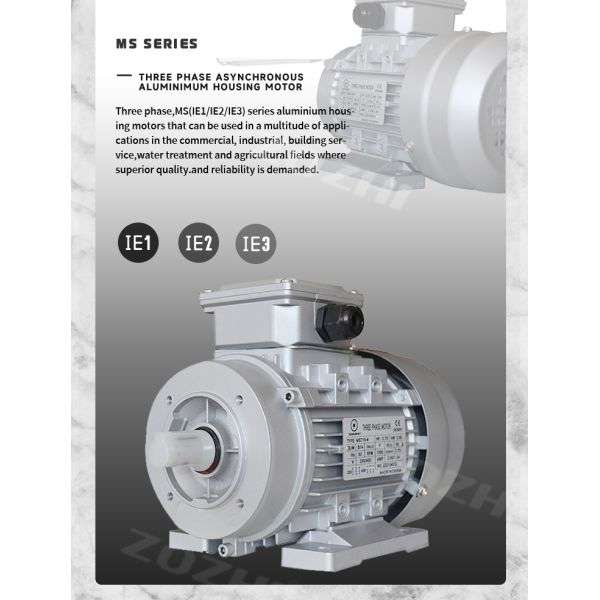

3 Phase Induction Motor front view showing industrial design and construction 3 Phase Induction Motor side view displaying compact aluminium housing Close-up detail of aluminium housing construction and heat dissipation fins Motor mounting interface and flange connection points Technical specifications label with ratings and certifications Cooling system detail showing ventilation and heat management Electrical connections and terminal box configuration Industrial application in pump system installation Quality inspection process and manufacturing standards Performance testing and measurement equipment
