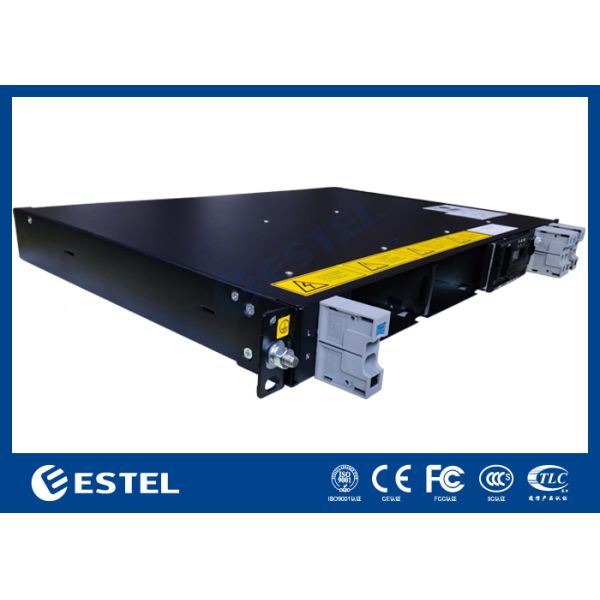

19 inch 1U DC48V Telecom Rectifier System for Network Equipment

Product Overview of 19 inch 1U DC48V Telecom Rectifier System

The ET4860-M3I21 DC rack power system provides a high-capacity, resilient DC power solution designed specifically for telecommunications infrastructure, data center operations, and industrial applications requiring dependable DC power distribution. It accepts 220VAC single-phase input and delivers a stable DC output adjustable between –43VDC to –58VDC, with a nominal operating point of –53.5VDC. Offering a maximum output capacity of 6kw, this system reliably supports high-demand installations while achieving power conversion efficiency exceeding 96%.

Featuring a modular and redundant design, the system supports up to 2*3000W rectifier modules configured for N+1 redundancy, with each compact module weighing under 2kg. The rectifiers utilize forced-air cooling, achieve a near-unity power factor (≥0.99), and maintain low total harmonic distortion (THDi ≤5%) for efficient and clean power conversion. With front-access maintenance, top-panel cabling, and IP20 ingress protection, the 1U rack-mountable chassis emphasizes operational safety, ease of service, and straightforward integration into standard 19-inch cabinets.

AC Distribution of 19 inch 1U DC48V Telecom Rectifier System

• Input mode: 220VAC single-phase

• Input frequency: 45–66Hz, rated value: 50Hz/60Hz

DC Distribution of 19 inch 1U DC48V Telecom Rectifier System

• Output voltage: –43 ~ –58VDC, rated value: –53.5VDC

• Maximum capacity: 6kW(2*3kw, N+1 redundancy)

• Battery breakers: 1U push-in terminal*2

• Load breakers: BLVD: 1U push-in terminal*2

Rectifier of 19 inch 1U DC48V Telecom Rectifier System

• Input voltage: 85VAC ~ 300VAC, rated 220VAC

• Efficiency: >96%

• Rated power: 3000W (176–300VAC)

• Working temperature: –40℃ ~ +75℃ (full output below 50℃)

• Dimension: 106.5mm(W) × 286mm(D) × 41.5mm(H) (1U/H)

• Weight: ≤2kg

• Cooling mode: Forced cooling

• Power factor: ≥0.99

• THD: ≤5%

• DC output: –43 ~ –58VDC, rated –53.5VDC, maximum 55A

Controller of 19 inch 1U DC48V Telecom Rectifier System

• Signal input: 3 AI (3 ambient temp), 7 DI

• Alarm output: 6 dry contact

• Communication port: RS232/485, SNMP

• Display mode: LCD

System and Environment of 19 inch 1U DC48V Telecom Rectifier System

Details of 19 inch 1U DC48V Telecom Rectifier System
