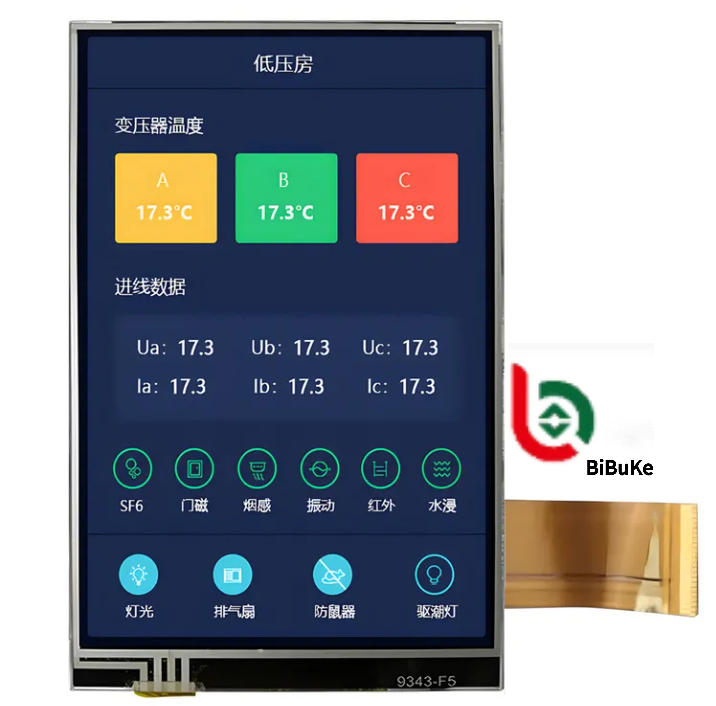

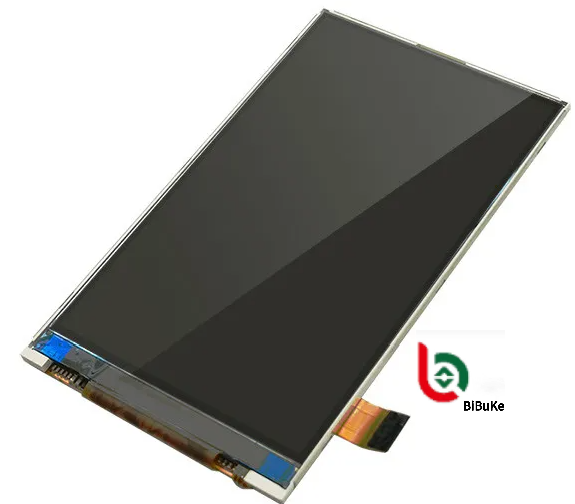

3.7" Inch MIPI Interface 480x800 TFT LCD Display
A high-performance 3.7-inch TFT LCD display featuring MIPI
interface technology, designed for industrial and commercial
applications requiring reliable visual performance.
Technical Specifications
| Parameter | Specification |
|---|
| Product | 3.7" Inch TFT Screen |
| Resolution | 480x800 |
| Driver IC | HX8369-A01 |
| Touch Screen | Without (with PCAP Optional) |
| Cover Glass Dimension | Can Be Customized |
| Viewing Direction | IPS All Viewing Angles |
| Interface | MIPI (Customizable) |
| Connection | Connector Type (Can Be Customized) |
| Pin Number | 24 Pins (Customizable) |
| Surface Luminance | 300 Cd/m² (nits) |
| Outline Dimension | 55.26x84.69x3.35 mm |
| Operating Temperature | -20ºC to +70ºC |
Product Overview
This 3.7-inch TFT LCD display features a 480x800 resolution with
IPS technology, providing wide viewing angles of approximately 80
degrees in all directions. The MIPI interface ensures high-speed,
low-power data transmission for stable connectivity with main
control chips and peripheral devices.
Key Features
- Working voltage: 2.8V to 3.5V (typical 3.2V) with low power
consumption
- Brightness: 300cd/m² (customizable up to 1000cd/m²)
- Operating temperature range: -20ºC to +70ºC
- Storage temperature range: -30ºC to +80ºC
- Wide environmental temperature adaptability
Applications
- Mobile Devices: Portable data terminals, handheld game consoles
- Medical Equipment: Blood glucose meters, blood pressure monitors
- Industrial Control: Operation panels, controller displays
- Vehicle Electronics: Rearview mirror displays, multimedia players
- Smart Home Devices: Smart doorbells, temperature controllers
Frequently Asked Questions
I want the LCD display 8 digits and the outline size is
65x30x2.8mm. Is this possible?
Yes, we can accommodate custom specifications. Please provide your
detailed specification drawing or samples. We can recommend
suitable standard products or create custom solutions based on your
requirements.
This LCD is what we want, but it's too big. Do you have smaller
sizes? We also need minor display content changes.
For segment type LCD modules requiring size modifications or
display content changes, we can create new LCD glass modules with
custom tooling.
This LCD display is HTN type, but I want STN type. Can you make
this change?
Yes, we can modify the display type according to your
specifications and requirements.
Can you customize a new LCD module for our application?
Absolutely. Please provide your drawing specifications or detailed
requirements including outline size, display information, glass
thickness, polarizer type, display type, connector mode,
temperature ranges, supply voltage, viewing direction, and drive
conditions.
What is the lead time for custom tooling?
Typically 15 to 25 days after drawing confirmation and tooling
charge payment. We will provide exact timelines upon drawing
approval.
Can you provide samples for evaluation?
Yes, sample orders are available for quality verification and
testing.
What is your standard lead time?
For standard products in stock, lead time is one day after payment.
For mass production of custom orders, lead time is approximately
15-30 days. We will notify you promptly if we can complete orders
earlier.
