Datacard CD800 ID Card Printer Consumables Ribbons Cleaning Kits

The CD800 card printer revolutionizes high-quality printing with the industry's first print resolution of 300 x 1200 dpi. Fine text, complex two-byte characters and 2D bar codes print as sharp and legible as they appear on-screen. Datacard® TrueMatch™ printing technology closely matches the colors on the card to the colors on your screen, reproducing images in vibrant colors.

Tiger Spare Parts Co., Ltd. is your trusted one-stop supplier for high-quality consumables and spare parts tailored for the Datacard CD800 ID Card Printer. We offer a comprehensive range of components to keep your printer running at peak performance, backed by professional testing, reliable warranties, and flexible supply options.

Key Product Range

We specialize in supplying all essential consumables and spare parts for the Datacard CD800, including:

Color Ribbon Kit (YMCKO, YMCKF-KT, GT-KT, and black resin variants)
Cleaning Kit (cleaning cards, adhesive cleaning sleeves, cleaning rollers)
Print Head (original part number 546504-001, compatible and refurbished options)
Mechanical Parts: Gears, Shaft Assemblies, Clutch Assy, Rollers
Electronic Components: Motors, Cables
Other replacement accessories for full printer maintenance

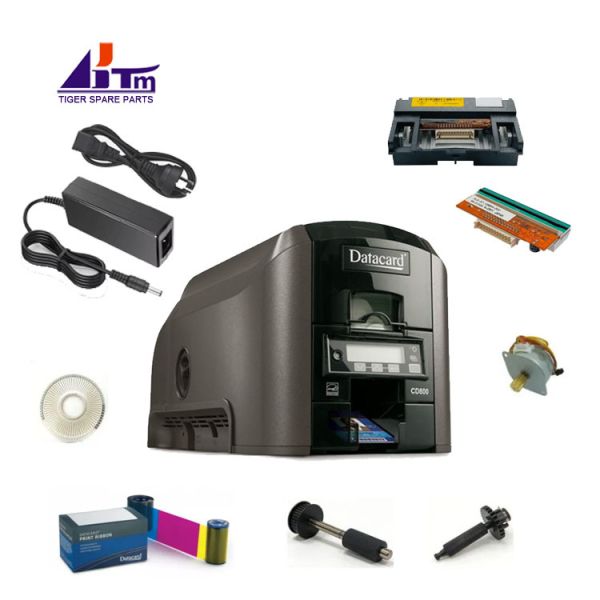

Datacard CD800 ID Card Printer consumables and spare parts display

Cleaning & Maintenance

Part Number	Description
507377-001	Cleaning Swab (5 Pack)
552141-002	Cleaning Card (10 Pack)
569946-001	Cleaning Sleeve Kit (5 Pack)
570113-001	Cleaning Sleeve Kit (10 Pack)
572880-001	Cleaner Spindle

Printing Components

Part Number	Description
512572-998	Ribbon Cartridge Assembly
546504-999	Thermal Printhead Assembly

Color Ribbon Kits

Part Number	Description
535700-001	Color Ribbon Kit - 98mm YMCKT 250 Yield
535700-002	Color Ribbon Kit - 98mm YMCKT Short, 650 Yield
535700-004	Color Ribbon Kit - 98mm YMCKT 500 Yield
535700-005	Color Ribbon Kit - 98mm YMCKT-KT 350 Yield
535700-006	Color Ribbon Kit - 98mm YMCKT-KT Short, 435 Yield
535700-104	Color Ribbon Kit - 98mm YMCKT 500 Yield, FII
535700-105	Color Ribbon Kit - 98mm YMCKT-KT 350 Yield, FII
535000-002	Color Ribbon Kit - YMCKT 250 Yield
535000-003	Color Ribbon Kit - YMCKT 500 Yield
535000-004	Color Ribbon Kit - YMCKY 650 Yield Short Panel
535000-005	Color Ribbon Kit - KT 1000 Yield
535000-006	Color Ribbon Kit - YMCKTKT 300 Yield
535000-007	Color Ribbon Kit - YMCKTK 375 Yield
535000-008	Color Ribbon Kit - YMCK 500 Yield
535000-009	Color Ribbon Kit - YMCKK 375 Yield
535000-010	Color Ribbon Kit - KTT 750 Yield
535000-012	Color Ribbon Kit - ST-KT 500 Yield
535000-013	Color Ribbon Kit - GT-KT 500 Yield

Monochrome Ribbon Kits

Part Number	Description
532000-003	Monochrome Ribbon Kit - Dark Blue 1500 Yield
532000-004	Monochrome Ribbon Kit - White 1500 Yield
532000-005	Monochrome Ribbon Kit - Red 1500 Yield
532000-006	Monochrome Ribbon Kit - Silver 1500 Yield
532000-007	Monochrome Ribbon Kit - Gold 1500 Yield
532000-008	Monochrome Ribbon Kit - Green 1500 Yield
532000-009	Monochrome Ribbon Kit - Scratch Off 1500 Yield
532000-052	Monochrome Ribbon Kit - Black HQ 500 Yield (CD800 Only)
533000-053	Monochrome Ribbon Kit - Black HQ 1500 Yield
532000-054	Monochrome Ribbon Kit - Metallic Silver 1500 Yield
532000-055	Monochrome Ribbon Kit - Metallic Gold 1500 Yield

Power Supplies & Cables

Part Number	Description
597640-001	SticklCARD (100 Cards)
810499-001	Power Supply, 72W, 24 Vdc, 3A Right Angle DC, Cord Not Included
810499-002	Power Supply, 72W, 24 Vdc, 3A Straight DC, Cord Not Included
804517-003	Power Cord, US/NA, 10A, 125VAC
809440-001	International Power Cord, 10A, Europe
809440-003	International Power Cord, 10A, UK
809440-004	International Power Cord, 10A, Denmark
809440-005	International Power Cord, 10A, India
809440-007	International Power Cord, 10A, Italy
809440-008	International Power Cord, 10A, Swiss
809440-009	International Power Cord, 10A, China
809440-010	International Power Cord, 10A, Australia, New Zealand, Fiji
809440-011	International Power Cord, 10A, Israel
809445-001	International Power Cord, 7A, 125V, Japan
574154-001	TPH Cable Assembly
535644-001	Sensor Encoder Cable Assembly
809519-001	6FT USB Cable Assembly (With Ferrite)

CD800 Print Engine Drives

Part Number	Description
506346-993	FRU, PWA, Print Engine Drive, CD800, Simplex, Custom (See Config Label)
506346-992	FRU, PWA, Print Engine Drive, CD800, Simplex (See Config Label)
506346-991	FRU, PWA, Print Engine Drive, CD800, NTT (See Config Label)
506346-989	FRU, PWA, Print Engine Drive, CD800, Custom (See Config Label)
506346-988	FRU, PWA, Print Engine Drive, CD800, Standard (See Config Label)

Mechanical Components

Part Number	Description
504229-002	Swingarm Assembly
505224-001	Motor, Pick/Ribbon
538862-001	Fan, 35x35x6
589060-001	Gear, Ribbon Drive
546504-999	Thermal Printhead Assembly
543759-001	Pick Block Assembly
510722-001	Clutch Assy, Pick Roller
553949-001	Gate Spring

Our Advantages

1. Comprehensive Supply Capabilities

Product Types: Brand-new original, refurbished, compatible, and used spare parts available
Custom Service: In-house factory with mold-making capacity, offering tailored part solutions
Wide Industry Coverage: Beyond card printers, we supply spare parts for ATMs, cashflow bill acceptors, POS terminals, counter sorters, banknote counters, and various cash handling modules

2. Trusted Brand Partnerships

We cooperate with leading global brands including NCR, Diebold Nixdorf, Wincor, Glory, NMD, GRG, Fujitsu, Hyosung, Hitachi, Genmega, OKI, Datacard, MEI, VeriFone, etc., ensuring genuine compatibility and reliable performance.

3. Quality Assurance

All electronic modules and parts undergo strict testing by our engineers before shipment
90-day warranty for all products, covering manufacturing defects and performance issues
Environmentally friendly options: Biodegradable ribbon cores for eco-conscious printing

Why Choose Tiger Spare Parts?

With years of experience in the spare parts industry, we combine competitive pricing, fast delivery, and professional technical support to meet your maintenance needs. Whether you need a single color ribbon or bulk spare parts for fleet maintenance, we provide flexible ordering options and consistent quality.

We're committed to ensuring your Datacard CD800 printer operates efficiently with minimal downtime. Our team is ready to assist with product selection, customization requests, and after-sales support.

Product Tags:


*From:	Your email address is incorrect!
*To:	Tiger Spare Parts Co., Ltd
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Categories	Card Printer
Brand Name:	Datacard
Model Number:	CD800
Certification:	ISO9001
MOQ:	1 Unit
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	1000 Units Per Year
Delivery Time:	It depends on the quantity of your order
Packaging Details:	Carton / Pallet
Brand:	Datacard
Type:	CD800 Card Printer & Consumables
Model:	CD800
Warranty:	90 Days
Print technology:	Direct-to-card dye-sublimation/resin thermal transfer
Operating system support for printer driver:	Windows 7 / 8 ,XP SP3 / 2003 R2 (32 bit), Server 2012/2008 (64 bit)
