OEM ODM 3d Printer production capabilities combined with customizable features to accelerate product development timelines

OEM ODM 3d Printer production capabilities combined with customizable features to accelerate product development timelines

OEM ODM 3d Printer production capabilities combined with customizable features to accelerate product development timelines
OEM ODM 3d Printer production capabilities combined with customizable features to accelerate product development timelines
Categories OEM ODM 3d Printer
Brand Name: MakerPi
Model Number: P300
Place of Origin: Guangdong, China
MOQ: 1
Price: 620
Payment Terms: ,L/C,T/T
Supply Ability: 500units
Delivery Time: 1-30days
Packaging Details: Carton
Certification: CE，FCC,Rohs
filament diameter: 1.75 mm(0.07in)
Hot Bed material: PEI
production capacity: 200mm/s
Supporting Material: PLA, ABS, PETG, TPU, PA-CF
application: Education,designers,home users,industry,etc.
automatic grade: Automatic
Build Material: PLA, ABS, TPU, Other
Build Volume: 300*300*300mm
color & page: Single Color
condition: New
Connectivity: other
Connector Type: USB
dimension(l*w*h): customize
features: Bendable magnetic platform, Easy to assembly
Filament Type: ABS, PLA, TPU, PVA, PA-CF
Input Power: Power Adapter
Operating System: Other
Plate Type: Flatbed
Plug Specification: US Plug, UK Plug, AU Plug, Japan Plug, EU Plug
Print Speed: Up To 200 mm/s
Print Technology: FDM
Printer connectivity technology: USB, Wifi
usage: 3d printing
voltage: 100-240V
warranty: 1 Year
weight: 35
Hot Bed Temperature: 0-120℃
Nozzle Temperature: 0-300℃
Printing Material: ABS/PLA 1.75mm
Product Size: 54*50*68cm
Packing Size: 60*57*74cm
Nozzle Diameter: Standard 0.4mm
Layer Thickness: 0.05-0.30mm
Slice Software: Cura
Support File Format: STL, G-code
Contact Now
Company Info.
Shenzhen Soongon Technology Co., LTD
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

OEM ODM 3d Printer production capabilities combined with customizable features to accelerate product development timelines

ADVANTAGES
large size fast 3d printer
Parameters
Build Volume
300*300*300mm [11.81*11.81*11.81IN]
Nozzle Number
Single
Layer resolution
0.05-0.30mm
Forming precision
±0.1-0.3mm
Nozzle diameter
0.4 MM [0.015IN]
Printing material
PLA/TPU/PVA/PA-CF/PA/ABS,etc.
Filament diameter
1 75 mm [0.069IN]
Software Bundle
CURA-Chinese/English
Supported File Types
stl;Gcode;obj;dae;amf;bmp;jpg
XY Positioning Precision
12.8 Microns [0.0005 IN]
Z Positioning Precision
2.5 Microns [0.0001 IN]
Nozzle temperature
300℃
SD card offline printing
USB driver(U disk)
Working voltage
AC220V-7.5A
Input voltage
220V/110V
Average power/maximum power
1600w
Product Dimensions
54*50*68cm[21.25*19.68*26.77IN]
Shipping Box
60*57*74cm[23.62*22.44*29.13IN]
Product Weight
32Kg[70.54IB]
Shipping Weight
36Kg[79.36IB]
Environmental requirement
15-35℃,Humidity20-50%
Products Description
1. Build Volume
300*300*300mm (11.8*11.8*11.8inch)
2. 24 Minutes
Ultra Fast And High Quality.
3. 25 Points Automatic Leveling
The 3D printer is equipped with a leveling sensor that automatically detects the distance between 25 points and adjusts the distance between the nozzle and the hot bed,ensuring smooth operation every time the 3D printer works.
4. Pei Flexible Steel Platform
This 3D printing platform is made of high-strength PEI material, which is shock-resistant, wear-resistant, and flexible. After printing, simply bend the platform gently to remove the model directly. When paired with a high-temperature hotbed that heats up quickly and evenly, it significantly reduces the risk of bottom plate destory.

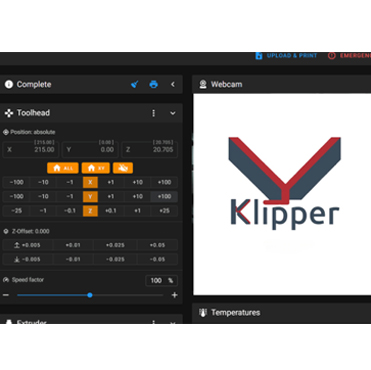

5. Klipper Open-Source Firmware
Maximum Printing Speed 200mm/s Maximum Motion Speed 400mm/s Maximum Acceleration Speed 5000mm/s

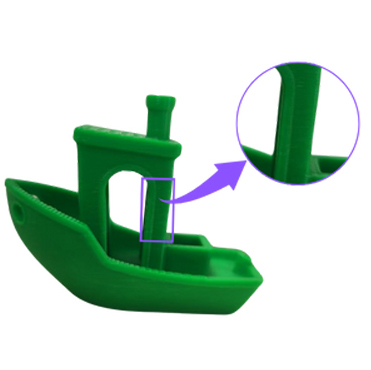

6. Vibration Compensation
ASensors monitor the vibration signals of machines in real-time during high-speed operation and dynamically correct the motion trajectory of the print head through intelligent compensation algorithms. This technology is like equipping the 3D printer with an "anti-shake filter," effectively eliminating layer lines and making the surface of the printed parts layer lines.

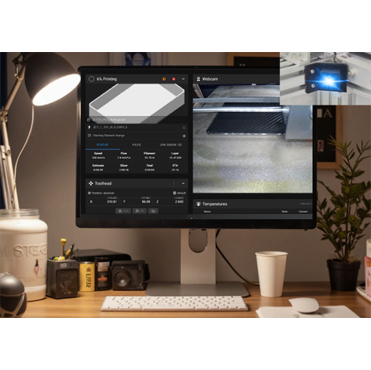

7. Camera Monitoring
Real-time viewing of the printing process via WIFI or network cable connection.

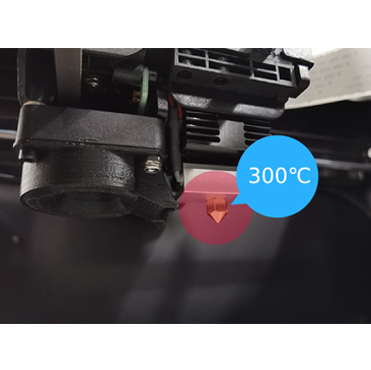

8. 300℃ High-Temp Nozzle
The nozzle peak temperature can reach up to 300℃,while the heated bed can maintain a maximum temperature of 120C, ensuring seamless handling of functional materials such as ABS and PA.
9. Slient Driver
Using TMC2208 driver chip of Trinamic company,the machine running with less noise,you can have a quiet and comfort-able printing environment.
10. Controls Multiple Machines Simultaneously
With a single click, multiple printers can start printing simultaneously, enabling efficient and convenient production.

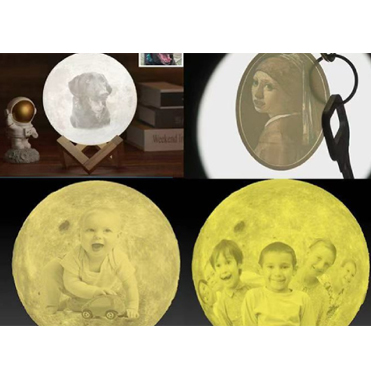

11. Picture Relief Printing
As long as you have well-defined picture,you can print the relief effect.This is a fun feature.

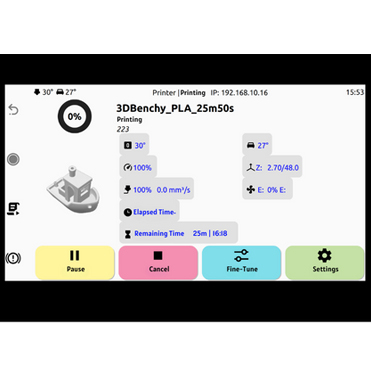

12. 5"Screen With Model Preview
This 3D printer is equipped with a 5-inch touch screen, which allows you to preview the model and see the printing progress during printing.

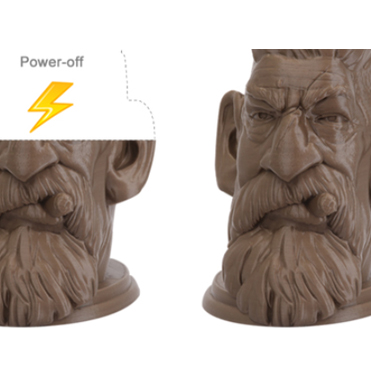

13. Power Off Resume
No worry about the power off, It can continue printing after power recover.

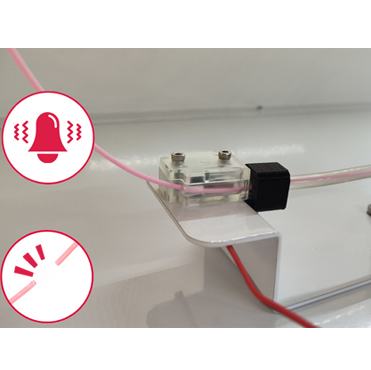

14. Alarm On Filament Breaking
Alarm on filament breaking during the printing continue to print after loading filament.
MORE FEATURES
15. Online Firmware Update

16. Change Filament During Printing
Filament can be changed during printing.lf you don't have many flaments left and you want to use up the
remaining filaments. At this time, you can use the change filament function. When the filament is about to
run out, press one key to unload the filament and load the new filament. It can reduce the waste of filaments.
17. Support Filament
PLA/TPU/PVA/PA-CF/PA/ABS,etc.
18. Printing Methods
USB offline printing,WIFI transmission,Ethernet transmission, inserting USB cable for printing
19. Fan Speed Feedback
Monitor the fan speed to ensure that the fan is always running at its optimal speed.
20. Control Multiple 3D Printers
Connect to the same local area network and use mobile phones or computers to control multiple 3D printers for mass production.

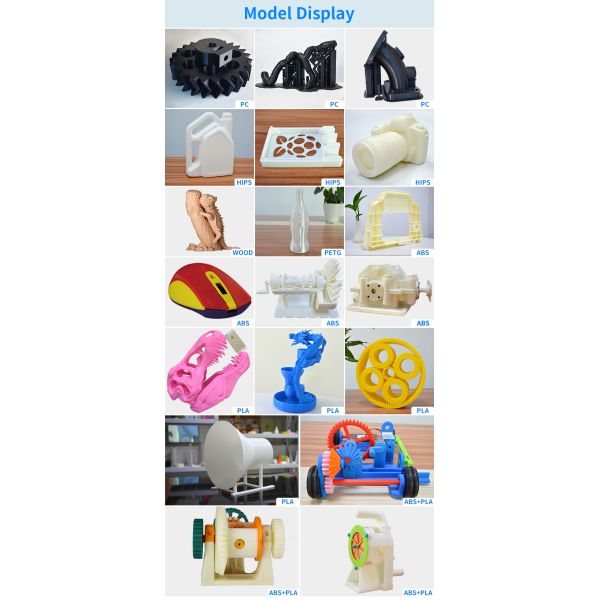

Model Display
Company Profile
Certifications
CE/ROHS/FCC Certificate
Our products are all certified to CE,FCC,and ROHS standards
Patent Certificate
Our company is a National High-Tech Enterprise in China.
Our factory has passed the GB/T19001-2006/ISO9001:2015 certification quality system.
6 invention patents,30 utility model patents,7 appearance patents,3 Computer Software's Registration,
46 authoritative patent certificates in total.
Production process
Shenzhen Soongon Technology Co.,Ltd was established in 2012. In sustainable development, we have accumulated rich experience in hardware communication research and believe that 3d printing technology can change life. Our professional R&D team can supply the client with innovation technology and professional hardware solutions.
Soongon is a National hightech enterprise, has certificated ISO9001 qualified system. We’re one of the few manufactures that have the independent capacity of R&D, produce MakerPi 3D printer (MakerPi is our overseas brand) after our access to 3D printer market.
After years of technical and service precipitation , we have won the high praise from the users and distributors in Europe,America, Japan, Southeast Asian and so on. Our achievement comes from continuous innovation, superb technology and quality service. Through efforts, this technology will serve us better and change our life.

FAQ
Q1. Are you factory?
A1. Yes, welcome to visit our factory at any time.
Q3. All products have a warranty?
A3. Yes, all kinds of our products have 1 years warranty.
Q4. What is the payment terms?
A4. T/T, Paypal, Alipay etc.
Q5. Can we design packaging?
A5. Yes
Q6. Can we print our logo on the products?
A6. Yes, We can do it for you.
Q7. Can we customize product?
A7 Yes, OEM&ODM is welcome.
Q8. Filament not extruding properly?
A8: Check the type of filament you're working with and set the proper extruder temperature based on the filament type and heated build platform if applicable; trial and error. Rule of thumb is to set the extruder temperature to the highest temperature for the
specific filament, then decrease the temperature by 5°C until properly extruded. Please note this will vary with each 3D printer.
After Sales Service
After-sales service
MakerPi3d will be responsible for providing lifetime maintenance support services if you purchase it through legal channel.
1.A one-year warranty
2.Online and video technical support
