| Brand Name: | Huawei |
| Model Number: | S5755-H24N4Y-A |
| Product Size: | 2U |
| Products Status: | Stock |
| Layer Support: | Layer 2 and Layer 3 switching |
| Ports: | 28 |
| Router: | WS-C2960XR-24TS-I WS-C2960XR-48TS-I |
| Weight: | 3.2 kg |
| Network Protocols: | BGP, OSPF, EIGRP, IS-IS, and more |
| Skype Id: | album.kevin |
| Port Type: | 10/100/1000BASE-T |
| Redundancy Support: | VRRP, HRP, BFD |
| Operating System: | Huawei Versatile Routing Platform (VRP) |
| Vlans: | 4,094 |
| Communication Mode: | Full-Duplex & Half-Duplex |
| Operating Temperature: | 0°C to 45°C |
| Company Info. |
| Shanghai Xinben Information Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

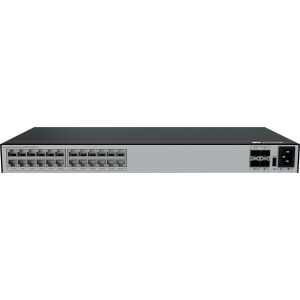

High-Performance Huawei Switch With 10G Uplink & AI O&M -
S5755-H24N4Y-A
The Huawei S5755-H24N4Y-A is a next-generation Gigabit Ethernet switch designed for enterprise and data center networks, delivering high-speed connectivity, intelligent management, and advanced security. With 24x 1G ports and 4x 10G SFP+ uplinks, it ensures seamless scalability for bandwidth-intensive applications like cloud computing, video surveillance, and VoIP.
✔ 10G Uplink & High Performance – Supports 10G fiber uplinks for
smooth aggregation and backbone connectivity, with a 126 Mpps
forwarding rate for zero latency.
✔ AI-Driven O&M – Huawei’s Telemetry and eSight integration
enables real-time monitoring, predictive analytics, and automated
troubleshooting.
✔ Flexible Stacking (iStack) – Combine up to 16 switches into a
single logical device for simplified management and redundancy.
✔ Enterprise-Grade Security – Features 802.1X, MAC/Port
authentication, ACLs, and anti-DDoS for secure access control.
✔ Energy-Efficient Design – Low power consumption (<50W) with
dynamic power adjustment for eco-friendly operations.
| Parameter | Specification |
|---|---|
| Ports | 24x 1G RJ45 + 4x 10G SFP+ |
| Switching Capacity | 256 Gbps |
| Forwarding Rate | 126 Mpps |
| Power Consumption | <50W (typical) |
| Security Features | ACLs, 802.1X, MAC/Port Auth, SSH/HTTPS |
| Management | CLI, Web, eSight, SNMPv3 |
| Operating Temp. | 0°C to 45°C |
✅ Enterprise Networks – Reliable Gigabit access + 10G aggregation
for offices and campuses.
✅ Data Centers – Low-latency, high-throughput connectivity for
servers and storage.
✅ Smart Surveillance – Handles high-density IP cameras with QoS
prioritization.
The S5755-H24N4Y-A combines future-proof 10G scalability, AI-powered O&M, and robust security, making it a cost-effective solution for modern networks. Its stacking capability and energy efficiency further reduce TCO (Total Cost of Ownership).
Upgrade your network today with Huawei’s high-performance switching technology!
|
