PLC Control Metal Cold Roofing Sheet Making Machiney Roof Tile Wall Pannel Roll Forming Machine

Categories	Roof Roll Forming Machine
Brand Name:	FMS
Model Number:	roofing sheet roll forming machine
Certification:	CE
Place of Origin:	china
MOQ:	1set
Price:	Negotiable
Payment Terms:	T/T, L/C
Supply Ability:	20sets per month
Delivery Time:	45 worl days
Packaging Details:	Naked with Plastic Film.
Voltage:	380V, 50HZ, 3 PHASES
Weight:	About 3500kg
Use:	roofing sheet wall pannel
Dimension(lwh):	71.21.2m
Raw material:	GI,Galvanized Sheet, PPGI/Galvanized Sheet
Power(w):	5.5KW
Control system:	PLC
Roller material:	45# steel with CNC machining and surface is being hard chrome
Thickness:	0.3-0.7mm
Forming speed:	8-15m/mis
Name:	PLC Control Metal Cold Roofing Sheet Making Machiney Roof Tile Wall Pannel Roll

Contact Now

Add to Cart

Company Info.

Cangzhou Famous International Trading Co., Ltd

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

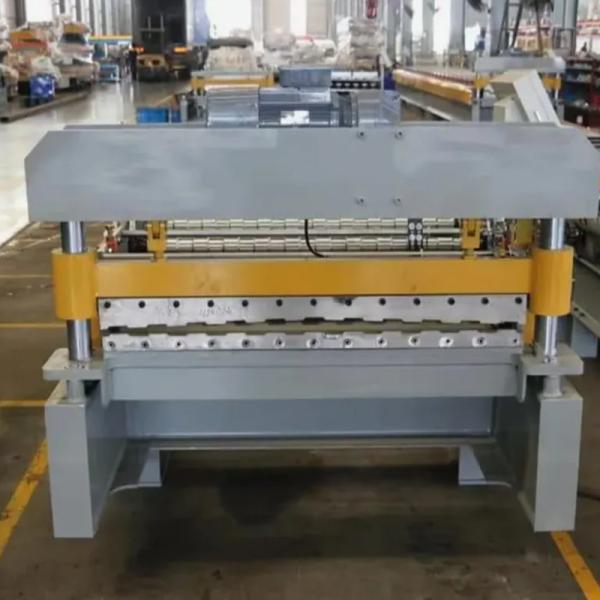

PLC Control Metal Cold Roofing Sheet Making Machiney Roof Tile Wall Pannel Roll Forming Machine

The PLC Control Metal Cold Roofing Sheet Making Machiney Roof Tile Wall Pannel Roll Forming Machine is composed of hydraulic shear head, roll forming system, electrical system, etc.

The roofing sheet wall pannel roll forming machine has the following characteristics:

1. Advanced technology: the line adopts continuous coil production after cold bending to determine the precision of the long cutting parts forming shape rules length accurate consistency.Good appearance and high strength of molding workpiece.

2. High productivity: this line only needs 2-3 people to operate, with simple operation and low labor intensity. The production
speed of this line is adjustable from 8to 15 meters per minute.
3. High reliability: the main components of the hydraulic, pneumatic and electrical systems of this line all adopt imported
high-quality components with stable performance and high reliability materials applicable to high technical parameters.

Specification

Warranty of core components	1 Year
Voltage	380V 50Hz
Weight	3500kg
Production Capacity	8-15m/min
Power	5.5Kw
Dimension(LWH)	about 700012001200mm
Applicable Material	GI,PPGI (According to customer requirements)
Production Capacity	8-15M/Min
Voltage	380V.50HZ.3Phase
Roll material	45# high grade steel
Frame thickness	16mm
Core Components	Motor, PLC
Roll stations	12
Rolling thinckness	0.3-0.7mm

Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation

Payment terms
40% in advance as down payment
60% is paid before the shipment is processed

Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.

RFQ

1. Does one machine can only produce one style panel profile?

Not exactly.For wider and double layer making machine. It can produce more than 6 kinds of panels.

2. What can you do if the machine broken?
Our machine's warranty period is 12 months,if the broken parts can't repair,we can send the new parts replace the broken parts ,but you need pay the express cost yourself.if after warranty period,we can through negotiation for to solve the problems,and we supply the technical support for the whole life of the equipment.

3. Can you be responsible for transport?
Yes,please tell me the destination port or address.we have rich experience in transport.

4. Are you manufacturer or trading company?
We are manufacturer and trading company .

5. Do you provide customized?
Sure, we can design the machine according to the requirement and profile drawing you provide. Our engineers can offer the best professional solution to our worldwide clients.

6. How can I trust you that machines pasted testing running before shipping?
1) We record the testing video for your reference. Or,
2) We welcome you visit us and test machine by yourself in our factory.

PLC Control Metal Cold Roofing Sheet Making Machiney Roof Tile Wall Pannel Roll Forming Machine
