| Categories | Overhead Line Stringing Equipment |
|---|---|
| Brand Name: | HANYU |
| Model Number: | TY90 |
| Certification: | ISO9001 |
| Place of Origin: | China |
| MOQ: | 1set |
| Price: | USD50,000.00-53,000.00/Set |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10Sets/Month |
| Delivery Time: | 15-35days |
| Packaging Details: | Container |
| Bull-wheel diameter: | 540mm |
| Speed at max pull: | 2.5km/h |
| Max diameter of rope reel: | 1400mm |
| Overall dimension (length*width*height): | 4000×2200×2100mm |
| Max intermittent pull: | 90kN |
| Type: | Hydraulic Electrical Pull String |
| Company Info. |
| Wuxi Hanyu power equipment co.,ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
Overhead Line Stringing Equipment 9T Hydraulic Electrical Pull String

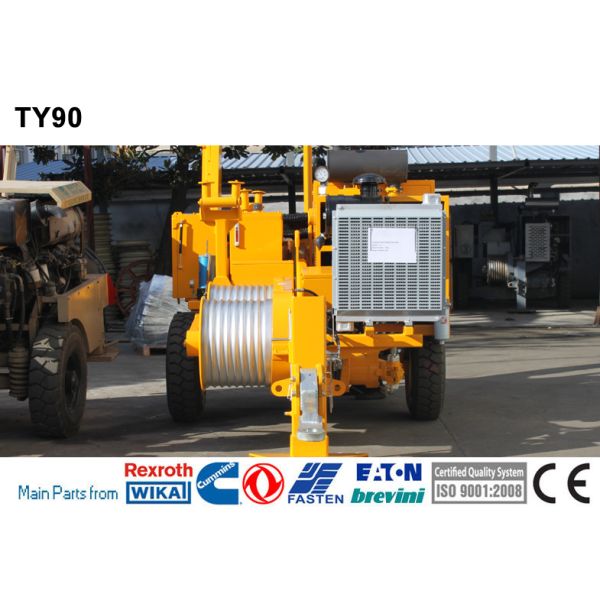

TY90 Hydraulic Puller
| Max continuous pull: 80kN |
| Max intermittent pull: 90kN |
| Max speed: 5km/h |
| Speed at max pull: 2.5km/h |
| Bull-wheel diameter: 540mm |
| Max rope diameter: 21mm |
| Pull at max speed: 40kN |
| Max diameter of rope reel: 1400mm |
| Total weight: 4680kg |
| Groove number: 8 |
| Overall dimension (length*width*height): 4000×2200×2100mm |
| Electrical system: 24V |
| Cooling system: water |
| Diesel: 118kw(158hp) |
| Speed reducer: German Rexroth / Italy Bonfiglioli |
| Tail bracket hoisting motor: American Eton |
| Hydraulic meter: German WIKA |
| Operating handle: German Rexroth |
| Hydraulic pump: German Rexroth |
| Engine: Cummins |
| Main motor: German Rexroth |
| Hydraulic Transmission Closed hydraulic circuit for step less speed variation in both rotating directions. This machine is provided with a pull pro-setting system that maintains the pre-set pulling value (also when the speed is reduced to "0") by automatically adjusting the operation speed according to the friction and unexpected loads which may occur. |
| Configuration Control instruments for hydraulic system and diesel engine Hydraulic oil cooling system Hydraulic dynamometer with set-point and automatic control of maximum pull Hydraulic front stabilizer Grounding connection point On board reel winder with automatic level wind, suitable for standard reel mod. 1100 and 1400 |
| TY90 Hydraulic Puller This machine allows for the tension stringing of twin-bundle conductor of 500mm2 and below in mountainous and hilly areas, of twin-bundle conductor of 630mm2 and below in flat lands, and of single conductor 720mm2 in various terrains; besides, it can be used for traction stringing of OPGW or ADSS optical cable and 220kV haulage rope in various terrains. |
| Additional Devices Lighting system for the trailer Hydraulic rope clamp for reel change Extra shaft Trailer for towing at max speed of 15 km/h Digital speed and meter counter (extra charge) Swivel guide rope roller |

|   |
