FSL500 Gradeability Geological RCD Drilling Machine With Dust Collector And 3 In 1 Sampler

Categories Reverse Circulation Drilling Rig
Brand Name: ZHENGYUAN
Model Number: FSL500
Place Of Origin: Shandong Province
Certification: ISO/CE
MOQ: 1 set
Packaging Details: WOODEN CASE OR OTHER
Delivery Time: 10-25 DAYS
Payment Terms: tt,L/C,T/T,Western Union,MoneyGram
Supply Ability: 40 sets / month
Place of Origin: CHINA
Price: 57000usd/set
Drilling Depth: Up To 500 Meters
Engine Power: 132kw
Keyword: Reverse Circulation Drilling Rig
Feed Force: 25T
Type: RC Drilling Rig
Winch: Hydraulic
Gradeability: 21°
Drilling Method: Reverse Circulation
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

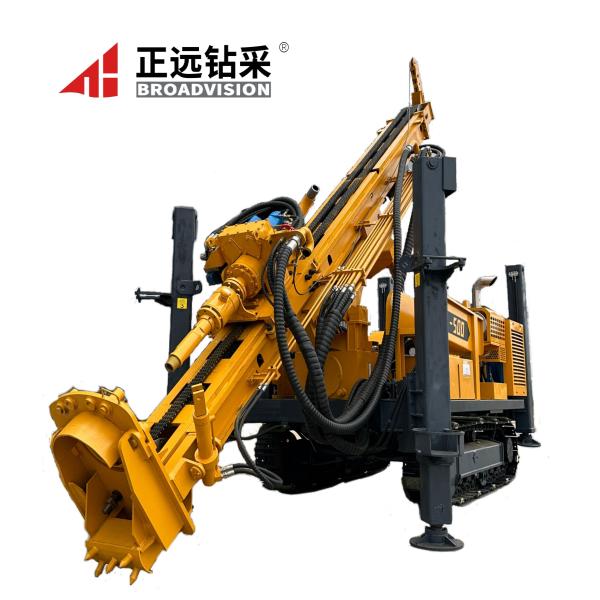

FSL500 Gradeability Geological RCD Drilling Machine With Dust Collector And 3 In 1 Sampler

Product Description:

Reverse circulation multifunctional drilling rig is a new efficient, environmentally friendly, and multifunctional tracked drilling rig.lt adopts the latest RC drilling and mining technology from abroad, and drilling dust can be effectively collected through dust collectors, avoiding environmental pollution. lt can also be collected and discharged through a cyclone separator, which can be used for sampling and analysis work in geological exploration departments.lt is the preferred equipment for geological exploration drilling and other deep holes.
This drilling rig can use compressed air reverse circulation down-hole drilling on various formations. The lifting of the drilling rig frame, compensation of the drilling frame/multi angle drilling unloading of the drill pipe rotation and feeding,support legs ,hoisting,walking and other movements are all achieved by the hydraulic system, greatly reducing labor intensity, improving construction efficiency and engineering quality.

It is a geological exploration drilling, drilling wells, monitoring wells, ground source heat pump air-conditioning and other deep hole of choice for equipment.

Features:

  • Product Name: Reverse Circulation Drilling rig
  • Drilling Depth: Up To 500 Meters
  • Drilling Method: Reverse Circulation
  • Power Source: Diesel Engine
  • Winch: Hydraulic
  • Engine Power: 132kw

Technical Parameters:

Technical parametersFSL500
Max drilling depth(M)400
EngineCummins
Power(KW)132
hydraulic pump(75-75-24)
Swing MotorPermco
6K490
Drilling diameter(mm)105-325
Air pressure(Mpa)1.2-3.5
Air consumption(m3/min)16-55
Drill pipe length(m)3
Drill pipe diameter(mm)102/114
Air circulation double layer drill pipe diameter(mm)102/114
Axial pressure(T)7
Lifting force(T)25
Fast lifting speed(m/min)23
Fast feeding speed(m/min)33
Max rotary torque(Nm)10000/5000
Max rotary speed(r/min)75/150
Small secondary winch lifting force(T)1.5
Jacks stroke(m)1.6
Drilling efficiency(m/h)10-35
Moving speed(km/h)2.5
Uphill angle(Slope)21°
Weight of the rig(T)12
Dimension(M)6.32*1.7*2.39
Working conditionUnconsolidated formation and stone head
Drilling methodTop drive hydraulic rotary and pushing, hammer or mud drilling
Matched DTH hammerMedium and high air pressure series
Optional accessoriesMud pump,Centrifugal pump,Generator,foam pump

Support and Services:

Our Product Technical Support and Services for the Reverse Circulation Drilling rig include:

- Detailed user manuals and guides for proper setup and operation of the rig.

- Remote technical assistance for troubleshooting and resolving any issues that may arise during drilling operations.

- On-site training for operators to ensure safe and efficient use of the rig.

- Regular maintenance and servicing schedules to keep the rig in top working condition.

FAQ:

Q: What is the brand name of this Reverse Circulation Drilling rig?

A: The brand name is Shandong Zhengyuan.

Q: What is the model number of this Reverse Circulation Drilling rig?

A: The model number is FSL500.

Q: Where is this Reverse Circulation Drilling rig manufactured?

A: This rig is manufactured in Shandong Province.

Q: What are the key features of the Shandong Zhengyuan FSL600 Reverse Circulation Drilling rig?

A: The FSL500 model is known for its high performance, durability, and efficiency in drilling operations.

Q: Is the Shandong Zhengyuan FSL600 Reverse Circulation Drilling rig suitable for deep drilling projects?

A: Yes, the FSL500 model is designed to handle deep drilling projects effectively and efficiently.
