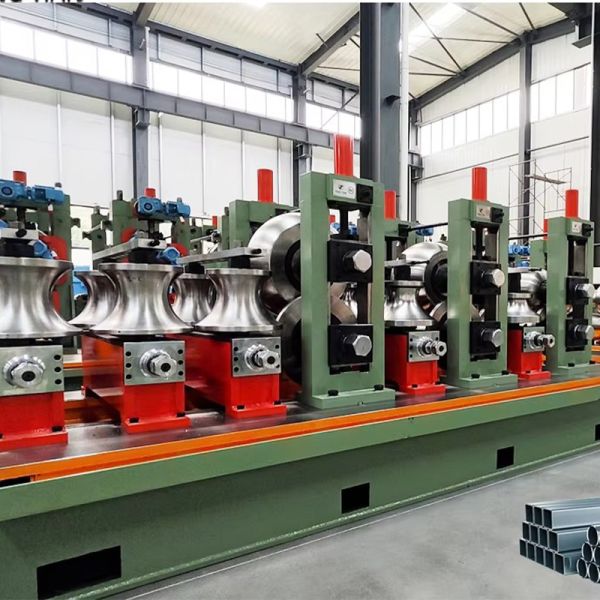

Q235 Carbon Steel Pipe Making Machine for Round Pipes 219mm

This Q235 Carbon Steel Pipe Making Machine is designed to produce high-quality welded steel pipes, including round, square, and rectangular pipes. Featuring advanced roll pass design, the production line ensures precise machining and high-quality assembly.

• Standard: Conforming to YB189-64 standard
• Material: Low carbon steel and low alloy steel, Q235
• Strip Width: 320-700mm
• Strip Thickness: 1.5-6.0mm
• Inner Diameter of Coils: φ470～φ510mm
• Outer Diameter of Coils: Φ1000～φ1800mm
• Coil Weight: ≤8T

• Pipe Size:
  • Round Pipe: ø89-219mm
  • Square Pipe: 80x80 - 175x175mm
  • Thickness: 1.5-6.0mm
• Length: 6m
• Forming Speed: 20-50 m/min
•

• Total capacity: Around 850 kw
• Circulation Cooling Water (whole system):
  • Flow: 20T/h～30 T/h
  • Pool Volume: 30m³
• Compressed Air (whole system):
  • Flow: 5m³/min
  • Pressure: 5-7kg/㎡
• Cable: All cables outside of the machine must be purchased after machine installation

FAQ :

Q1: Are you manufacturer or trading company?
A1: we are manufactuer , more than 20 years experience.

Q2: What is the max size of pipe you have even produce?
A2: Max φ630mm

Q3:Can I visit your customer machine line?
A3: Yes, but I need to get agreement from my customer firslty.

Q4: what is your machine advantages?
A4:Contain Full automatic, Direct forming square, Share rollers. Fast change system

Q5:How I can get the quotation?
A5:Please send your requires of pipe size , thickness to us.
