Industrial 4-Port 10/100/1000T 802.3bt 90W PoE + 1-Port 10/100/1000T + 2-Port 100/1000X SFP Gigabit Ethernet Switch

Industrial 4-Port 10/100/1000T 802.3bt 90W PoE + 1-Port 10/100/1000T + 2-Port 100/1000X SFP Gigabit Ethernet Switch

Advantages

► 5 10/100/1000BASE-T Gigabit Ethernet RJ45 copper ports

► 2 SFP slots, supporting 1000BASE-X and 100BASE-FX transceiver in dual modes

► Complies with IEEE 802.3bt PoE Standard

► Up to 4 ports of IEEE 802.3bt/at/af devices powered

► Up to 360-watt PoE budget

► Supports PoE power up to 95 watts for each PoE port

► Supports DIN-Rail installation

► Compact fanless design avoids overheating

► IP40 rugged high-strength metal case

► 48~57V DC redundant power with reverse polarity protection

► -40°C to 80°C (-40°F to 176°F) operating temperature

Overview

E-link LNK-IMC205GHP-SFP Series is a Mini Industrial High Power 90W 802.3bt PoE Switch with 4*10/100/1000T Ethernet ports that support IEEE802.3at/af/bt for a maximum of 90W/port, 1*10/100/1000T Gigabit Ethernet port, and 2*100/1000 dual rate SFP slots for fiber connection.

LNK-IMC205GHP-SFP adopts the IEEE 802.bt PoE++ standard and PoH technology, it is capable to source up to 95 watts of power by using all the four pairs of standard Cat5e/6 Ethernet cabling to deliver power and full-speed data to each remote PoE compliant powered device (PD). It possesses triple amount of power capability than the conventional 802.3at PoE+ and is an ideal solution to satisfy the growing demand for higher power consuming network PDs, such as: PoE PTZ speed dome cameras, Thin clients, AIO (all-in-one) touch PCs, point of sale (POS) and information kiosks, Remote digital signage displays and PoE lightings.

The LNK-IMC205GHP-SFP is IP40 rated and DIN-rail mountable. It also provides high EFT and ESD protection for industrial networking applications, such as power/utility, water wastewater, oil/gas/mining, factory automation, security surveillance, ITS and any other outdoor or harsh environment.

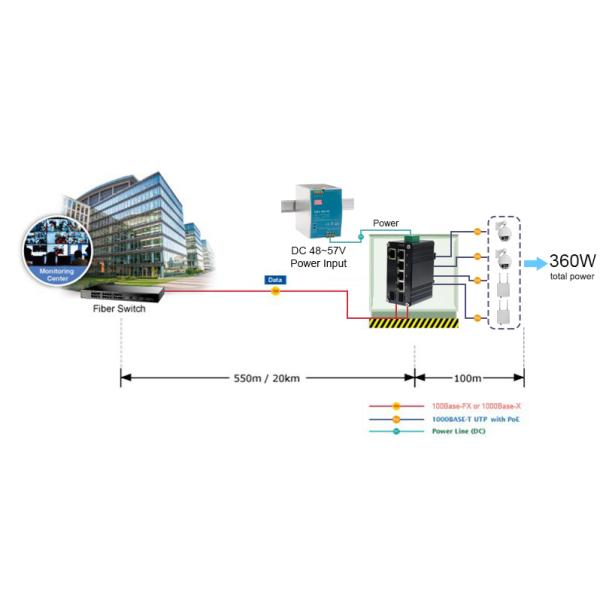

Application

Ordering Information

Dimension & Size
