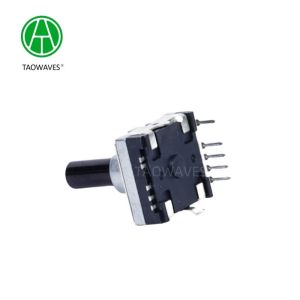

| Categories | Absolute Encoder |
|---|---|
| Model NO.: | ES18A00V01 |
| Readout Mode: | Contact |
| Operating System: | Contact Brush Type |
| Signal Output: | Voltage Output |
| Axle Sleeve Type: | Empty Type |
| Installation Form: | Axle Sleeve Type |
| Customized: | Support Customization |
| Factory Attributes: | ODM |
| Transport Package: | Carton |
| Specification: | 18mm |
| Trademark: | TAOWAVES |
| Origin: | China |
| Customization: | Available |
| Type: | Rotary Encoder |
| Working Principle: | Absolute |
| Company Info. |
| Dongguan Taotao Electronics Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
| 1.Electrical Characteristics | |
| Rated voltage: | DC 10V |
| Resistive load (Each bit): | 1mA |
| Resolution: | 8/10/12/15/16pulses/360° |
| Insulation resistance: | 50MΩ Min at DC 250V |
| Dielectric strength: | 1 minute at AC 50V |
| 2.Mechanical Characteristics | |
| Total ratational angle: | 360° |
| Step angle: | 45° |
| Rotational torque: | 200-500gf.cm |
| Push-Pull Strength of shaft: | 10KG |
| Movement of shaft: | 0.35mm Max. |
| 3.Endurance Characteristics | |
| Rotational life: | 30,000cycles |
| Operating temperature range: | -20ºC to+70ºC |
| Storage temperature range: | -40ºC to+85ºC |
Application:
|
