| Brand Name: | TeXin |
| Model Number: | TX-100W |
| Certification: | CE ISO |
| Place of Origin: | Shenzhen China |
| MOQ: | 2 |
| Price: | Negotiable |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000/month |
| Delivery Time: | 5-8 days |
| Packaging Details: | durable case or box |
| Module Size: | 187*91*25mm |
| Connector: | N/ Female |
| Main Frequency Bands: | 433MHz, 868MHz, 915MHz, 2.4GHz |
| Gain: | 50dBm |
| Power Supply Wire: | Red+Black |
| Frequency Range: | Customized |
| Product Name: | Customized 50dbm 100W with attenuation adjustment wifi drone FPV signal jammer module |
| Current: | 15A |
| Voltage: | 28-32 |
| Weight: | 798g |
| Company Info. |
| Shenzhen TeXin electronic Co., Limited |
| Verified Supplier |
| View Contact Details |
| Product List |

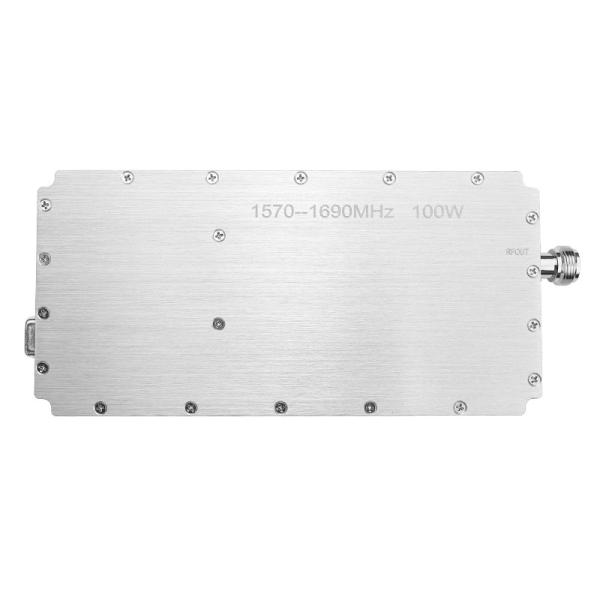

Customized 50dbm 100W with attenuation adjustment wifi drone FPV signal jammer module
This module is the most important component of drone signal jammers. The module has an output power of 100W and is equipped with an attenuation adjustment button. Customers can adjust it according to actual usage.The max gain can reach 50dbm.
This module is mainly used for the installation of large signal shielding equipment, and can provide you with customized services according to your needs!
specification
| DIP No. | PIN definition | Function | Remark |
| 1 | D6 | Attenuate 16dB | High level attenuation Low level does not attenuate |
| 2 | D5 | Attenuate 8dB | |
| 3 | D4 | Attenuate 4dB | |
| 4 | D3 | Attenuate 2dB | |
| 5 | D2 | Attenuate 1dB | |
| 6 | D1 | Attenuate 0.5dB | |
| 7 | LE | Serial Latch Enable Input | |
| 8 | P/S | Serial/Parallel Mode Selection | High level serial mode (software control) |
| Low level parallel mode (manual control) |
|
