| Categories | PLC Interface Module |
|---|---|
| Brand Name: | OMORN |

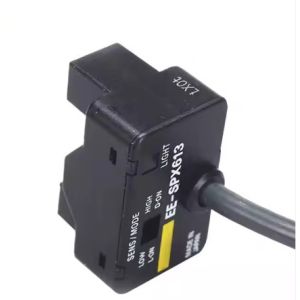

| Model Number: | EE-SPX613 |
| Certification: | 3C |
| Place of Origin: | Japan |
| MOQ: | 1 |
| Price: | 120$/piece |
| Payment Terms: | T/T |
| Supply Ability: | 1piece in stock |
| Delivery Time: | 3 day |
| Packaging Details: | 100*100*100mm |
| Quality: | 100% Original 100% Brand |
| Operating Temperature: | -10°C to 60°C |
| Output Type: | PNP |
| Firmware Version: | V1.0 |
| Rated Operating Distance: | 4 mm |
| Dimension: | 100.0mm x 52.5mm x 80.0mm |
| Degree Of Protection: | IP65 / IP66 / IP67 / IP68 |
| Company Info. |
| Xiamen ZhiCheng Automation Technology Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
| Type | Tubemounting | |
|---|---|---|
| Sensing method | Through-beam type | |
| Operation mode | Dark-ON/Light-ON (selectable) | |
| Applicable pipe | Any 6 to 13 mm diameter pipe with a wall thickness of 1 mm that is made of FEP or any other material as transparent as FEP. | |
| Standard sensing object | Liquids in pipes (High-viscosity liquids or liquids with floating materials may not be detected.) | |
| Light source (Peak wavelength) | GaAs infrared LED (940 nm) | |
| Indicator | Light indicator GaP (Red LED: Peak wavelength of 700 nm) | |
| Power supply voltage | 12 to 24 VDC ±10% | |
| Current consumption | Average value: 30 mA max. | |
| Control output | Output type | NPN open collector output |
| Load power supply voltage | 5 to 24 VDC | |
| Load curren | 100 mA max. | |
| Residual voltage | at 100 mA load current: 0.8 V max. | |
| Illumination on the surface receiver | Incandescent light, sunlight: 3000 lx max. | |
| Ambient temperature | Operating: -10 to 55 ℃ (with no freezing or condensation) | |
| Ambient humidity | Operating: 5 to 85 % (with no condensation) | |
| Vibration resistance | Destruction: 10 to 500 Hz, 1.0 mm single amplitude or acceleration 150 m/s2, 3 times each in X, Y, and Z directions (11 min/sweeps) | |
| Shock resistance | Destruction: 500 m/s2 for 3 times each in X, Y, and Z directions | |
| Degree of protection | IP50 | |
| Connection method | Pre-wired models | |
| Cable length | 1 m | |
| Weight | Package: Approx. 55 g | |
| Material | Case: Polycarbonate (PC) | |
| Accessories | Cable tie, slip protection tube, Instruction manual | |
|   |
