Name: Goodyear SuperCushion Rubber Air Bellows 1B8560 Single Convoluted Style
Brand: GUOMAT
Price: 1 USD

Product Details
Company Profile

Goodyear Super-Cushion Rubber Air Bellows 1B8-560 Single Convoluted Style

Goodyear Super-Cushion Rubber Air Bellows 1B8-560 Single Convoluted Style

Air Spring Introduction

Air springs have been a cornerstone of heavy-duty vehicle suspension systems for nearly a century, leveraging the compressed air already utilized in vehicle braking systems. Compared to traditional mechanical leaf or coil springs, air springs offer two key advantages. Firstly, air suspension provides enhanced comfort by allowing adjustments to the air pressure within the spring. This flexibility changes the spring rate, improving overall ride quality. Secondly, the ability to vary air pressure enables precise control over deck or trailer height, making it easy to align with loading docks even in the absence of dock plates.

Product Details

Bellows: 579-913-532

Air port thread diameter: 1/4 in.

Air port thread standard: UNC

Air port thread type:1/4 UNC

Bumper type: None

Diameter at 100 psi: 9.4 in.

End plate diameter: 5 in.

Force at max. stroke at 100 psi: 1600 lbs

Height range: 4 to 6-1/2 in.

Load range at 100 psi: 1900 to 3300 lbs

Material: Natural rubber

Spring style: single convoluted

Stroke: 3.20 in.

System natural frequency: 2.33 Hz

Tap spacing: 2-3/4 in.

Enidine Air Spring Technical Parameters

Model Number			Force (lbs.) @ 100 psi A Stroke of
Product Number	Assembly NO.	Max. Stroke (in.)	2.0 in.	4.0 in.	6.0 in.	Max. Stroke	Isolator Load Range @ 100 psi (lbs.)	Design Height Range (in.)
YI-2B6	530	4.9	1900	1100	-	580	1300-2000	4.5-6.5
	531	4.9	1900	1100	-	580	1300-2000	4.5-6.5
	532	4.3	1700	800	-	580	1300-2000	4.5-6.5
	535	6.3	2350	1600	700	560	1500-2000	5.0-7.0
	536	5.7	2100	1450	700	560	1500-2000	5.0-7.0
YI-2B7	540 / 546	6.5	2900	2300	1250	800	1600-2500	6.0-8.0
	541	6.5	2900	2300	1250	800	1600-2500	6.0-8.0
	542	5.7	2750	2000	-	800	1600-2500	6.0-8.0
YI-2B8	550 / 552	7.2	3600	2700	1800	1000	2300-2700	7.0-8.0
	553	7.2	3600	2700	1800	1000	2300-2700	7.0-8.0
	554	6.6	3350	2500	1400	1000	2300-2700	7.0-8.0
YI-2B9	200 / 204	7.6	1650	3850	2550	1100	2300-3700	7.5-9.5
	201 / 205	7	4400	3550	2100	1100	2300-3700	7.5-9.5
	216	7.6	1650	3850	2550	1100	2300-3700	7.5-9.5
	208	7	4400	3550	2100	1100	2300-3700	7.5-9.5
	250	8.7	4800	4000	3250	1500	3000-3800	7.5-9.5
	251	9.4	4700	3900	3100	1500	3000-3800	8.0-10.0
	255	8.4	4700	3900	3100	1500	3000-3800	8.0-10.0
	256 / 263	8.7	4800	4000	3250	1500	3000-3800	8.0-10.0
	275	8.7	4800	4000	3250	1500	3000-3800	8.0-10.0
YI-2B12	425 / 429	7.7	8400	7200	5200	2700	5200-7200	7.5-9.5
	309 / 318	6.9	8050	6600	4250	2700	5200-7200	7.5-9.5
	437	7.7	8400	7200	5200	2700	5200-7200	7.5-9.5
	416 / 419	10.8	9100	8100	7100	2600	7100-8100	7.5-9.5
YI-2B14	354 / 352	7.8	12900	11100	8400	3400	8400-11100	7.5-9.5
	355 / 353	6.4	11600	9400	4800	3400	8400-11100	7.5-9.5
	362 / 363	11.4	14500	13100	11800	4300	8400-13100	7.5-9.5
	452	11	13650	12700	11200	4300	11800-13075	7.5-9.5
YI-2B15	375 / 377	9.1	13700	12300	10300	2500	10300-12300	7.5-9.5
YI-2B15	376 / 378	7.9	12850	10950	7900	2500	10300-12300	7.5-9.5

Features of GUOMAT Air Bellows

Highly durable, precisely engineered and cost-effective for use in a wide variety of actuation and vibration isolation applications.
Provide superior quality and performance—with time-tested designs, fabric-reinforced neoprene or natural rubber flex member construction and corrosion-protected end retainers.
As an actuator, they provide linear or angular motion.
Favorable stroke-to-compressed-height ratio when compared to air cylinders.
Accept a wide variety of actuation media such as air, water, nitrogen or antifreeze.
As an isolator, they are effective in reducing the harmful effects of vibration.
Simultaneously isolate vibration and regulate load height, as well as allow for consistent vibration isolation under varying loads
GUOMAT offers a variety of air spring types to meet your actuation or isolation needs.

Company Profile

Guangzhou Guomat Air Spring Co., Ltd. is founded in 2008, the company covers an area of 20000 square meters, registered capital is 10 million yuan, the existing various types of professional and technical personnel is 85 people.The company is located in Guangzhou, about 15min's drive from Baiyun Airport. and our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles' seat, luxurious car and industrial machine field.

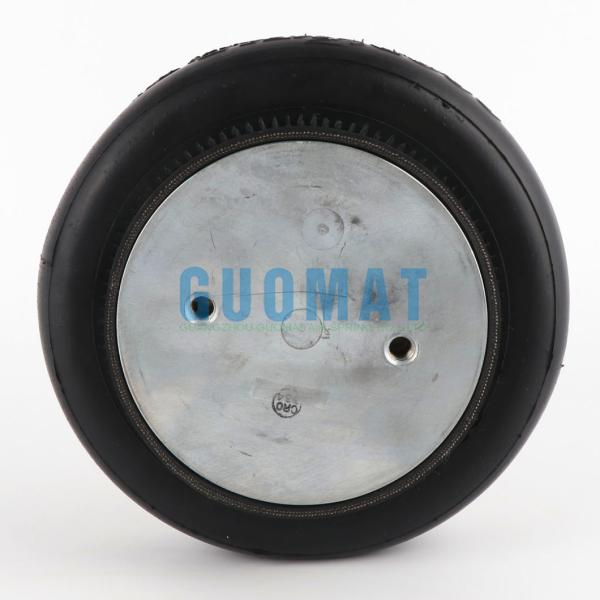

Rubber Air Bellows 1b8-560 Goodyear Single Convoluted Air Spring

Product Images

Product Tags:


*From:	Your email address is incorrect!
*To:	GUANGZHOU GUOMAT AIR SPRING CO. , LTD
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Categories	Goodyear Air Spring
Brand Name:	GUOMAT
Model Number:	1B8-560
Certification:	ISO/TS16949, ISO9001
Place of Origin:	Guangdong, China
MOQ:	5
Price:	Negotiable
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week
Delivery Time:	5-8 Working Days
Packaging Details:	Strong Carton Box or as Customers Requirement
Model NO.:	1B8-560
Structure:	Single Convoluted
Function:	Reduce Shock
Quality:	100% Tested
Condition:	Brand New
OEM:	579912560
Trademark:	GUOMAT
Warranty:	1 Year
