Aluminum Plastic Board Processing Engraving Machine Double Spindle Double System

Categories Aluminum Profile CNC Machining
Brand Name: SUBA
Model Number: SUBA1680
Certification: CE
Place of Origin: China
MOQ: 1set
Price: bargaining
Payment Terms: L/C,T/T
Supply Ability: 100set
Delivery Time: 5-8 week days
Packaging Details: Wooden box packaging
Product_Control_System: CNC
X-axis: 1600
Y-axis: 8000
Z-axis: 200
Table: Vacuum
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

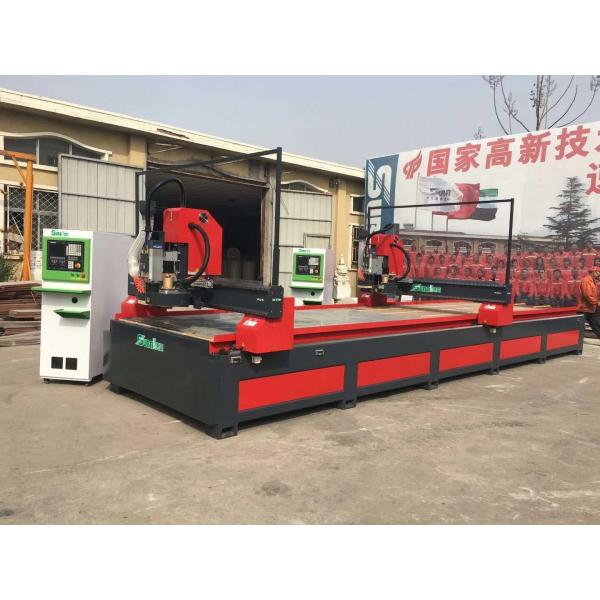

Aluminum Plastic Board Processing Engraving Machine Double Spindle Double System

With the rapid development of the manufacturing industry, the requirements for CNC equipment are becoming higher and higher. High speed, high precision, high efficiency, safety, environmental protection, multi-axis linkage and composite processing have become the mainstream of the development of today's processing center. This engraving machine is mainly used for processing aluminum and plastic board.

Processing function: carving, milling, cutting and drilling of stair beam, non-standard board parts

Processing materials: aluminum-plastic board, aluminum plate and other building decoration appearance materials

Processi
Processing route(X*Y*Z)1600mm*8000mm*200mm
Integrated machine toolWelding of heavy wall square steel, with thick steel strip welding processing on the machined surface, all parts of the gantry bed body are welded with reinforcement ribs, (designed and manufactured through finite element analysis) the bed body and gantry, all machined surfaces have been formed by CNC five-axis milling.
Comprehensive SolutionAdopt a three-axis machining center + 8-tool automatic tool changer solution.
WorkbenchCustomized profile quick-clamping pneumatic workbench surface
ConsoleIndependent distribution cabinet
Spindle motor9KW Automatic tool changer spindle*2+ 8 t knife cabinets
Transmission systemX/Y is precision ground rack drive, and the Z-axis is driven by a Taiwan TBI screw.
Drive motorJapanese Yaskawa absolute value bus servo motor (Y-axis with dual motors on one side, with the Z-axis being a motor with brake) (Does not need to return to the mechanical origin upon startup, has memory function for direct processing)
RailTaiwan CSK Guide Rail
Idle speedX/Y axis 40m/min, Z axis 15m/min
Repeatability of positioning±0.05mm/m
Lubrication systemAutomatic Lubrication System (High-power gear pump, volumetric lubricator. Each lubrication 0.02ML)
Machine tool wireIgus brand from Germany
Working VoltageProduce according to the voltage of the customer's country.
Air source requirements0.6-0.8Mpa
