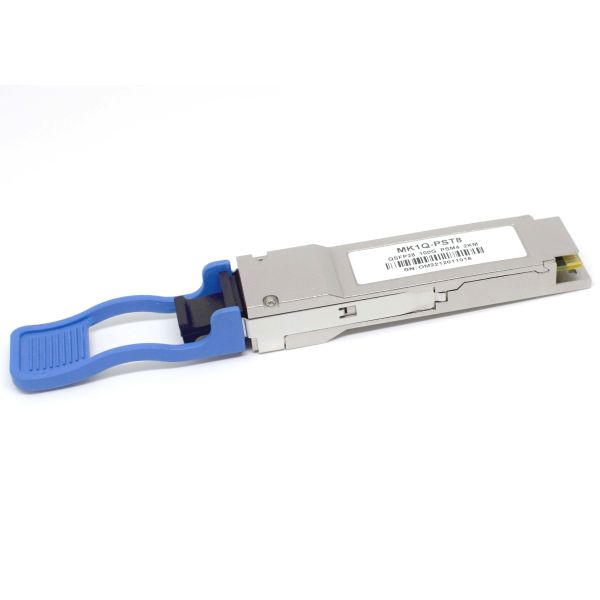

QSFP28 100G PSM4 Transceiver 2km Module Optical Transceiver Module

QSFP28 100G PSM4 Transceiver 2km Module Optical Transceiver Module

QSFP28 100G PSM4 Transceiver 2km Module Optical Transceiver Module
QSFP28 100G PSM4 Transceiver 2km Module Optical Transceiver Module
Categories Fiber Optical Transceivers
Brand Name: Optowix
Model Number: MK1Q-PST8
Certification: CE
Place of Origin: China
MOQ: 10
Payment Terms: T/T
Supply Ability: 10Kpcs
Delivery Time: 5-8 working days
Packaging Details: ESD plastic case
Optowix PN: MK1Q-PST8
Product Name: 100G QSFP28 PSM4 2km module
SpeedRate: 100G
TX: 4X25G DML Laser
RX: 4X25G PIN receiver
Distrance: 2km
Warranty: 12 Months
Application: Datacenter
Interface: LC duplex
Contact Now
Company Info.
Wuhan Optowix Co.,ltd.
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

QSFP28 100G PSM4 Transceiver 2km Module Optical Transceiver Module

QSFP28 100G PSM4 2km Module

Features

  • MPO-12 optical interface
  • Maximum link length up to 2km
  • Up to 25.78125Gb/s data links per lane
  • +3.3 V power supply
  • QSFP28 MSA compliant package
  • Hot Pluggable
  • High performance signal mode DML transmitter
  • High sensitivity PIN/TIA optical receiver
  • Single Mode operation
  • BER < 5E-5 @ -12.1
  • Case Operating Temperature: 0 to 70ºC
  • Data and Control Interfaces

Applications

  • 100G BASE Ethernet
  • InfiniBand EDR interconnects
  • Enterprise networking

Standards

  • QSFP28 MSA
  • SFF-8436,8636
  • IEEE802.3ba-2018

Ordering Information

Part NumberProduct Description
MK1Q-PST8QSFP28, 100Gbps, PSM4, SM, 2km, 0ºC ~ +70ºC

Product Description

The MK1Q-PST8 QSFP28 optical transceiver is intended for up to 2km reach service with four-lane
25.78125G data rate. It is based on 3.3V DC power supply and operates in the commercial temperature range. It is
compliant with QSFP MSA , SFF-8436 , SFF-8636 and PSM4 MSA. Digital diagnostic functions are available via
I2C interface, and the control functions can be achieved by LVTTL interfaces on the host, mainly including Module
Select(ModSelL), Module Reset(ResetL), Low Power Mode(LPMode). The transceiver incorporates a four-laser
array which is usually DFB , four-PIN diode array , a high performance CDR integrated four drivers and TIAs IC
separately. The differential AC coupled Tx and Rx data interfaces are CML compatible.


Absolute Maximum Ratings

ParameterSymbolMinTypMaxUnit
Power Supply VoltageVcc-0.33.6V
Storage Temperature RangeTs-4085°C
Relative Humidity - StorageRHS595%
Relative Humidity - OperatingRHO585%

Recommended Operating Conditions

ParameterSymbolMinTypMaxUnit
Case Operating Temperature RangeTc0-70°C
Power Supply VoltageVcc3.135-3.465V
Module Supply CurrentIIN--1000mA
