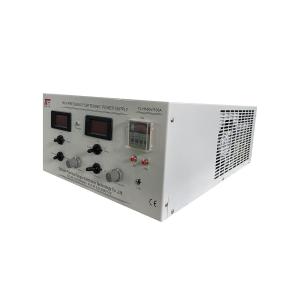

50V 100A Single-Phase Reversible Rectifier for Electroplating Anodizing Polarity Switching

Parameter Value Input Voltage AC 220V ±10% (Single-phase, adaptive to 50/60Hz) Output Voltage DC 0-50V adjustable (Positive/negative polarity can be switched) Output Current DC 0-100A adjustable Maximum Power 5KW (50V × 100A) Reversing Function Supports manual/auto polarity switching (Period can be programmed) Efficiency ≥88% (High-frequency IGBT technology) Ripple Coefficient ≤1% (Low-noise output) Cooling Method Intelligent air cooling (Thermostatic speed regulation) Control Mode Local control panel + RS485 remote communication Protection Function Overvoltage/overcurrent/short circuit/overheat/phase loss protection Dimensions (Width×Height×Depth) 500×400×250mm (Compact type) Weight 45kg Working Environment -10℃ ~ 45℃, humidity ≤90% RH (No condensation) II. Product Description Core Functions Bidirectional current output: Supports fast switching of positive/negative polarity (Reversing time < 1 second), suitable for processes such as electrolytic polishing and reverse electroplating that require periodic reversing. High-precision control: The voltage/current resolution reaches 0.1V/0.1A, suitable for high-precision scenarios such as precious metal electroplating (e.g., gold plating, silver plating). Intelligent heat dissipation: The temperature-controlled fan automatically adjusts the speed according to the load, with a noise level < 60dB, and supports continuous operation for 24 hours. Technical Advantages High-frequency IGBT topology: The efficiency ≥ 88%, which is 15% more energy-efficient than traditional silicon-controlled rectifiers. Multiple protection mechanisms: Automatically reduces the rating in case of overload, cuts off instantly in case of a short circuit, and has an IP20 protection level. Flexible control: Supports local knob adjustment or remote RS485 communication (Optional 0-5V/4-20mA analog signal control). Typical Applications Surface treatment: Electrolytic polishing of aluminum materials, electrochemical cleaning of stainless steel. Precision electroplating: Micro-hole copper plating on PCBs, gold plating of connectors. Laboratory research and development: Verification of process parameters for small-batch electroplating.

Parameter Value Input Voltage AC 220V ±10% (Single-phase, adaptive to 50/60Hz) Output Voltage DC 0-50V adjustable (Positive/negative polarity can be switched) Output Current DC 0-100A adjustable Maximum Power 5KW (50V × 100A) Reversing Function Supports manual/auto polarity switching (Period can be programmed) Efficiency ≥88% (High-frequency IGBT technology) Ripple Coefficient ≤1% (Low-noise output) Cooling Method Intelligent air cooling (Thermostatic speed regulation) Control Mode Local control panel + RS485 remote communication Protection Function Overvoltage/overcurrent/short circuit/overheat/phase loss protection Dimensions (Width×Height×Depth) 500×400×250mm (Compact type) Weight 45kg Working Environment -10℃ ~ 45℃, humidity ≤90% RH (No condensation) II. Product Description Core Functions Bidirectional current output: Supports fast switching of positive/negative polarity (Reversing time < 1 second), suitable for processes such as electrolytic polishing and reverse electroplating that require periodic reversing. High-precision control: The voltage/current resolution reaches 0.1V/0.1A, suitable for high-precision scenarios such as precious metal electroplating (e.g., gold plating, silver plating). Intelligent heat dissipation: The temperature-controlled fan automatically adjusts the speed according to the load, with a noise level < 60dB, and supports continuous operation for 24 hours. Technical Advantages High-frequency IGBT topology: The efficiency ≥ 88%, which is 15% more energy-efficient than traditional silicon-controlled rectifiers. Multiple protection mechanisms: Automatically reduces the rating in case of overload, cuts off instantly in case of a short circuit, and has an IP20 protection level. Flexible control: Supports local knob adjustment or remote RS485 communication (Optional 0-5V/4-20mA analog signal control). Typical Applications Surface treatment: Electrolytic polishing of aluminum materials, electrochemical cleaning of stainless steel. Precision electroplating: Micro-hole copper plating on PCBs, gold plating of connectors. Laboratory research and development: Verification of process parameters for small-batch electroplating.

I. Core Parameters

Parameter Value
Input Voltage AC 220V ±10% (Single-phase, adaptive to 50/60Hz)
Output Voltage DC 0-50V adjustable (Positive/negative polarity can be switched)
Output Current DC 0-100A adjustable
Maximum Power 5KW (50V × 100A)
Reversing Function Supports manual/auto polarity switching (Period can be programmed)
Efficiency ≥89% (High-frequency IGBT technology)
Ripple Coefficient ≤1% (Low-noise output)
Cooling Method Intelligent air cooling (Thermostatic speed regulation)
Control Mode Local control panel + RS485 remote communication
Protection Function Overvoltage/overcurrent/short circuit/overheat/phase loss protection
Working Environment -10℃ ~ 45℃, humidity ≤90% RH (No condensation)

II. Product Description
Core Functions

• Bidirectional current output: Supports fast switching of positive/negative polarity (Reversing time < 1 second), suitable for processes such as electrolytic polishing and reverse electroplating that require periodic reversing.
• High-precision control: The voltage/current resolution reaches 0.1V/0.1A, suitable for high-precision scenarios such as precious metal electroplating (e.g., gold plating, silver plating).
  Intelligent heat dissipation: The temperature-controlled fan automatically adjusts the speed according to the load, with a noise level < 60dB, and supports continuous operation for 24 hours.
  Technical Advantages
• High-frequency IGBT topology: The efficiency ≥ 88%, which is 15% more energy-efficient than traditional silicon-controlled rectifiers.
• Multiple protection mechanisms: Automatically reduces the rating in case of overload, cuts off instantly in case of a short circuit, and has an IP20 protection level.
• Flexible control: Supports local knob adjustment or remote RS485 communication (Optional 0-5V/4-20mA analog signal control).

Typical Applications

• Surface treatment: Electrolytic polishing of aluminum materials, electrochemical cleaning of stainless steel.
• Precision electroplating: Micro-hole copper plating on PCBs, gold plating of connectors.
• Laboratory research and development: Verification of process parameters for small-batch electroplating.
