High Temperature Electric Sintering Alumina Tube Furnace Horizontal ISO Certified

Categories Rotary Furnace
Place of Origin: China
Brand Name: Chitherm
MOQ: 1
Price: Negotiable
Packaging Details: Customized
Delivery Time: Customized
Payment Terms: Customized
Supply Ability: 50 Sets/Year
Model Number: RTF3042 - 0611N
Range of Applications: Industrial
Type: Electric Holding Furnace
Usage: Ceramic Sintering
Fuel: Electric
Atmosphere: Nitrogen
Effective Chamber Dimensions: Inner Diameter Φ300*4230
Transport Package: Wooden Packaging
Specification: 1215*2500*6200mm(W*H*L)
Trademark: Chitherm
Origin: China
HS Code: 8514101000
Customization: Available
Certification: ISO
Place Style: Vertical
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

High Temperature Electric Sintering Alumina Tube Furnace Horizontal ISO Certified

High Temperature Sintering ISO Certified 1050 ordm C RTF3042 0611 Clean Rotary Furnace Electric Furnace Sintering Furnace

1. Application:
High-cleanliness quartz rotary furnace tubes are utilized for the heat treatment processes of high-end powder materials, such as ITO precursors and other granular or particulate substances.

2. Technical Specification:
  1. Rated temperature: 1000°C;
  2. Maximum temperature: 1050°C;
  3. Furnace tube material: High-purity quartz, clean and pollution-free;
  4. Furnace tube specifications: Inner diameter Φ300×4230mm; the inner wall of the quartz tube is welded with lifting plates, which can lift and naturally scatter the powder when the furnace tube rotates, ensuring more uniform and thorough sintering of the powder products;
  5. Loading structure: A loading bin is provided at the front end, with a screw feeder for automatic feeding, made of SUS316L;
  6. Discharging mechanism: A discharge bin and a discharge pipe opening are provided at the rear end, made of SUS316L, with a discharge port size of DN100;
  7. Heating element: Ceramic fiber heater;
  8. Number of temperature zones: 6;
  9. Number of temperature control points: 6;
  10. Thermocouple type: N scale;
  11. Temperature controller: Imported Yokogawa temperature controller from Japan, with PID parameter self-tuning function;
  12. Temperature control accuracy: ±1°C, with PID parameter self-tuning function;
  13. Alarm protection: Over-temperature, open circuit, and other audible and visual alarm protection functions;
  14. Maximum heating power: 48 kW;
  15. Idle furnace holding power: ≤24 kW;
  16. Heating rate: ≤10°C/min;
  17. Surface temperature rise: <35°C;
  18. Equipment capacity: 40 kg/24h;
  19. Equipment weight: Approximately 3000 kg;
  20. Appearance color: Light gray;
  21. External reference dimensions: 1215×2500×6200 mm (W×H×L), actual product dimensions may vary.

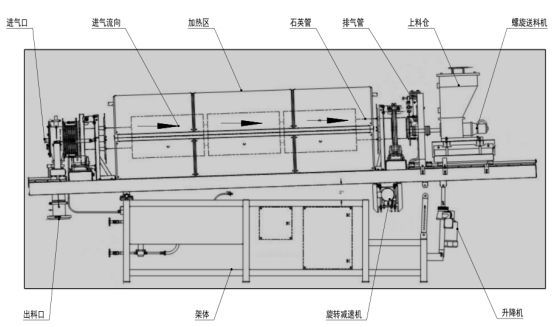

1050&ordm; C RTF3042 - 0611 Clean Rotary Furnace Electric Furnace Sintering Furnace
3. Delivery List
ItemNoteQty.
Basic ComponentsFurnace1 SET
inspection certificateCertificate of major outsourced components1 SET
Technical DocumentsInstructions, technical documents of the major outsourced parts, etc1 SET
Key ComponentsHeating Element1 SET
Touch Screen1 SET
Temperature Controller1 SET
Quartz tubeSiO21 PC
Reducer motor1 SET
Spare PartsSSR1 PC


4. Facility Requirements
  1. Environmental Conditions: temperature: 0~40ºC, humidity ≤ 80%RH, no corrosive gas, no strong airflow disturbance;
  2. Gas Source Conditions: High-purity nitrogen, with a purity of 99.999%, pressure range of 0.2 - 0.4 MPa;
  3. Ventilation System: non-contact access to the user pumping system, pumping capacity is greater than 30 m3/h
  4. Ground Requirements: horizontal, no obvious vibration, load-bearing> 500 Kg/m2;
  5. Power Condition(TBD): capacity > 64kVA, 3-phases 5-lines, voltage 220/380V, frequency 50Hz. Fire line: yellow, green, red, Zero line: blue, Ground line: yellow-green;
  6. Installation Site: 8000mm×2000mm×3000mm(L×W×H), with an installation area greater than 16m2.1050&ordm; C RTF3042 - 0611 Clean Rotary Furnace Electric Furnace Sintering Furnace
