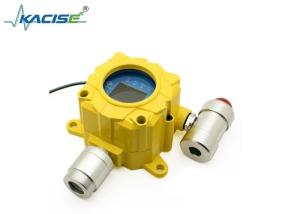

KFK-G60 Fixed Gas Detector
Introduction
KFK-G60 fixed gas detector is a new type of gas detector developed and produced by the company's many years of experience in gas detection. It is used to detect the concentration of flammable gases or other toxic and harmful gases in the air. When the concentration reaches or exceeds the preset alarm value. At the same time, the controller will give an audible and visual alarm, and promptly take measures to prevent the explosion and poisoning accidents, thus ensuring the safety of life and property.
Technical Parameters
| Product Name | K-G60 Remote Control Fixed Gas Detector |
| Explosion proof grade | Ex db lIC T6 Gb/Ex tb IIIC T80C Db |
| Protection category | IP 66 |
| Response time | <30S |
| Power supply | DC24V±15% |
| Working temperature | -20℃~50℃ |
| Output current | 4-20mA |
| Working humidity | 0-95%RH (no dew) |
| Contact output | Free contact output, max power 1kW |
| Single input | 4~20mA and RS485 |
| Installation method | Wall-mounted |
| Shell material | Aluminum |
| Dimensions | 190*150*95mm(L*W*H) |
Specifications
| Model | Range | Resolution | L-alarm | H-alarm |
| CO | 0-1000ppm | 1ppm | 50ppm | 150ppm |
| O2 | 0-30%vol | 0.1%vol | 19.5%vol | 23.5%vol |
| H2 | 0-1000ppm | 1ppm | 50ppm | 150ppm |
| H2S | 0-100ppm | 0.1ppm | 10ppm | 20ppm |
| CH4 | 0-5%vol | 0.01%vol | 1%vol | 2.5%vol |
| C2H4O | 0-100ppm | 1ppm | 10ppm | 20ppm |
| EX | 0-100%LEL | 1%lel/1%vol | 20%LEL | 50%LEL |
| HC | 0-2%vol | 0.01%vol | 0 | 0 |
| C2H6O | 0-100ppm | 1ppm | 10ppm | 20ppm |
| NH3 | 0-100ppm | 1ppm | 10ppm | 20ppm |
| CL2 | 0-50ppm | 0.1ppm | 5ppm | 10ppm |
| O3 | 0-20ppm | 0.1ppm | 5ppm | 10ppm |
| SO2 | 0-20ppm | 0.1 | 5ppm | 10ppm |
| PH3 | 0-20ppm | 0.1ppm | 5ppm | 10ppm |
| CO2 | 0-5%vol | 0.01%vol | 1%vol | 2%vol |
| NO | 0-250ppm | 1ppm | 50ppm | 150ppm |
| NO2 | 0-20ppm | 0.1ppm | 5ppm | 10ppm |
| HCN | 0-50ppm | 0.1ppm | 5ppm | 10ppm |
| HCL | 0-50ppm | 0.1ppm | 5ppm | 10ppm |
| HF | 0-10ppm | 0.1ppm | 3ppm | 5ppm |
| C7H8/C8H10 | 0-100ppm | 1ppm | 10ppm | 20ppm |
|   |
