| Categories | Analog Video Transmitter |
|---|---|
| Place of Origin: | China |
| Brand Name: | KimpoK |
| Model Number: | FOX-515H |
| Price: | $21.00 - $56.00/pieces |
| Private Mold: | Yes |
| Type: | wireless video transmission |
| Frequency: | 1.5Ghz |
| Power: | 12V DC |
| RF power: | 1.5W |
| Channel: | 12 Channel |
| Certification: | CE Cerfication |
| Delivery Time: | 3-7 work days |
| Company Info. |
| Kimpok Technology Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

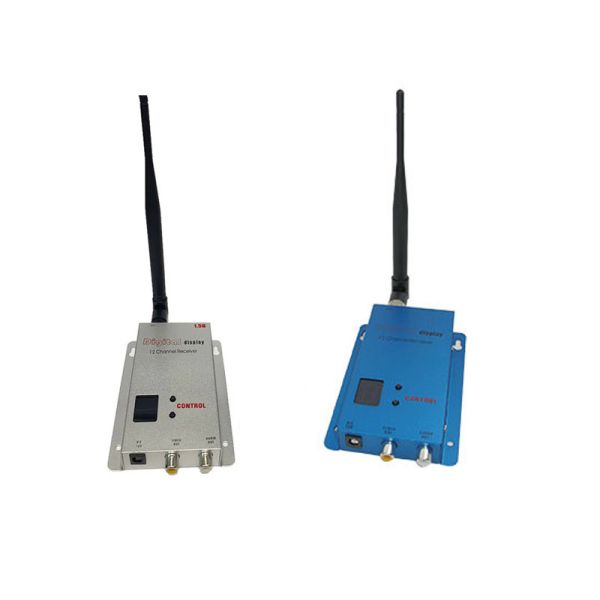

FPV 1.4Ghz/1.5Ghz/1.6Ghz 1500mW Video Sender Graphic transmission Wireless Video Transmitter and Receiver
FPV/drones Video Transmitter Description:
KP-C15 wireless video transmission equipment is an excellent all
aspects of performance are more varieties, and its large power
margin, more suitable for complex physical environment. The use of
0dB (Original small antenna) in full to the antenna, the city open
area to ensure the transmission 1-3km or so, and 10-20km LOS from
air to ground. And transmitter technology is superb and the special
metal is more conducive to heat, more suitable for long hours of
work. Signal input with common AV interface, it can easily work
with camera, VCD, DVD and all other conventional AV interfaces
compatible.
It's not only a professional wireless CCTV transmitter and receiver
for CCTV security projects but also used in the line of FPV system,
UAV, RC airplanes/helicopters, Video and Data signals at the same time in cars of
Unmanned Equipment.
Specification:
Voltage | DC 12V |
Current | 600mA |
Frequency | 1.4Ghz/1.5Ghz/1.6Ghz |
Number of channels | 8CHs |
Transmit Power | 1500mW |
Video Output | 1 Vp-p(FM) |
Audio Output | 1 Vp-p(FM) |
Audio Carrier Ware | 5.5M 6.0M |
Distance | 1-3km (Open environment); 10-20km LOS from air to ground |
Overall Configuration | Transmitter, receiver, AV cable, power supply, antenna |
Temperature | -10℃ ~ +50℃ |
Transmitter Weight | 82g |
Receiver Weight | 120g |
Dimensions (L * W * H) | Transmitter: 73*41*14mm. Receiver:116*80*21mm |
Box size (L * W * H) | 245*160*65 |
|
