| Categories | Operating Table |
|---|---|
| Brand Name: | BENRAY |
| Model Number: | BR-OT05 |
| Certification: | CE,ISO,TUV |
| Place of Origin: | CHINA |
| MOQ: | 1 |
| Price: | USD5100/set ~ USD 8000 / set |
| Payment Terms: | D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 set / month |
| Packaging Details: | plywood box |
| Product Name: | Electric Hydraulic Operating Table |
| Power: | 220 V / 50 Hz , 110 V / 60 Hz |
| Demensions: | 2100*550 mm |
| Function: | 9 function |
| Lateral Tilt(electric): | ±20° |
| MOQ: | 1 Set |
| Delivery time: | 5-7 days |
| Warranty: | 1 year |
| Controller: | Remote control & column |
| X-ray: | Radiolucent table |
| Company Info. |
| Guangzhou Benray Medical Equipment Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

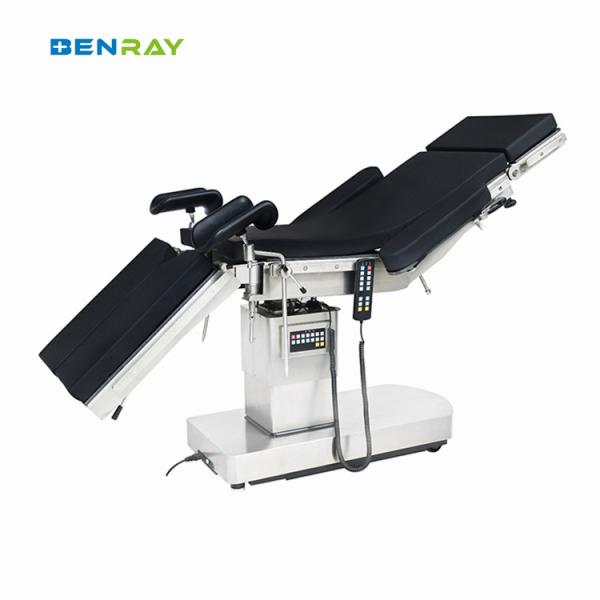

High End Multi Function Electric Hydraulic Hospital Operating Surgical Table
Model : BR-OT5

Feature
1. Five section: Head section & Back section & Kidney bridge & Seat section & Leg section.
2. Configured with two (2) independent power supply systems: AC
power and internal battery.
3. Sliding movement is compatible for C-arm machine.
4. Double Control Remote: Hand remote & Table mounted controller.
5. Electric brake to fix the base.
6. Flex and anti-flex function.
7. One key "0" position.
8. X-ray tunnel under the tabletop.
Teachnical Parameters
| Product | Multi Function Electric Operating Table |
| Model | BR-OT05 |
| Demensions | 2100*550mm |
| Functions: | |
| Height Adjustment(electro hydraulic) | 700-1050mm |
| Trendelenburg(electro hydraulic) | ±30° |
| Lateral Tilt(electro hydraulic) | ±20° |
| Back Section (electro hydraulic) | +85°/-40° |
| Head Board (manual) | +45°/-90° |
| Leg Board (manual) | +30°/-90° |
| Table Top Longitudinal Moving(electro hydraulic) | 300mm |
| Build-in Kidney Elevator(manual) | 0-120mm |
| Flex/Reflex | 220°/110° , 0 position |
Standard Configuration
| Shoulder supports | 2 Pcs |
| Waist supports | 2 Pcs |
| Arm supports | 2 Pcs |
| Leg supports | 2 Pcs |
| Anesthetic screen frame | 1 Piece |
| Mattress | 1 Piece |
| Hand controller | 1 Piece |
| Controller on the column: | 1 Piece |
| Power line | 1 Piece |
| Storage battery | 1 Piece |
| Cassette holder | 1 Piece |
Company Profile


Customer visit & feedback



FAQ
Q: Where is your company located in? Can I have a visit?
A: Our company is located in Guangzhou, China. We are glad to
invite you to come to our office and have a face-to-face talking
before placing orders.
Q: Do your products have quality assurance?
A: Yes.We have more than 10 years’ experience in making dental
unit. Our products have been exported to more than 30 countries.
Q: How about the discount ?
A: To guarantee the good quality, both raw material and manufacture
have cost us much. We can offer some discount if the quality is
large enough.
Q: How long is warranty for items?
A: 1 year and we can provide accessories replacement if it is
damaged during the warranty period.
Q: Could you print LOGO for items?
A: Sure. We can offer printing LOGO as your request.
Q: Do you have CE approved?
A: Yes. Most of our products have CE, TUV and ISO certifications.
|   |
