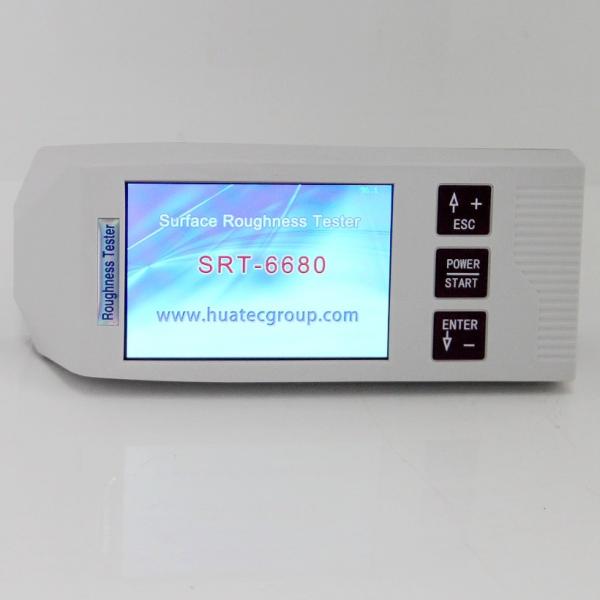

SRT-6680 Color Graphics LCD Display 22 Parameters TFT Touch Screen Surface Roughness Tester

SRT-6680 Color graphics LCD display 22 parameters TFT Touch Screen Surface Roughness Tester

Main Features

Mechatronic and ergonomics design, small size, light weight, easy to operation
The stylus drive unit can be stored within the main unit for standard measurement, or separated from the display unit by using the supplied cable which allows more flexible measurement in any orientation. The driver can be separated and reattached in one simple step.
DSP chip control and data processing, high speed, low power consumption
22 Parameters: Ra ,Rz, Rq, Rt, Rp ,Rv, R3z, R3y, Rz(JIS), Rs, Rsk, Rsm, Rku, Rmr, Ry(JIS), Rmax,RPc, Rk, Rpk, Rvk, Mr1, Mr2
Measurement range up to 160μm (can be optional to 320μm)
3.5 inches color graphic TFT touch screen, wide viewing angle, excellent readability and an intuitive rich display, it includes a backlight to improve visibility in dark environments
Can be operated using buttons or touch screen
It provide Blue tooth Capability , support wireless connection with mobile and mini printer.
Built-in lithium-ion rechargeable battery and control circuit, high capacity, no memory effect, it works over 50 hours while fully charged, and there is remaining charge indicator, charging hint
Large capacity data storage, 100 item of raw data and curves can be stored
Real-time clock setting and display for easy data recording and storage
With auto sleep, auto power off, power-saving features
Reliable circuit and software design to preventing the motor stuck
Language: Chinese and English switch freely
All parameters or any of the parameters which set by users can be printed
Optional accessories: Blue tooth capability, curved sensor, pinholes sensors, measurement, stand, extension rod, printer
Portable Surface Roughness Tester SRT6680 complies with international standards ISO, DIN, ANSI, JIS

Technical parameters

Measuring Range		The Z axis (vertical)	±80μm/±160 µm(enhanced model)
		The X axis (Transverse)	20mm
Resolution		The Z axis (vertical)	0．01μm/±20μm
			0．02μm/±40μm
			0．04μm/±80μm
			0．08μm/±160μm
22 Parameters			Ra,Rz,Rq,Rt,Rp,Rv,R3z,R3y,Rz(JIS),Rs,Rsk,Rsm,Rku,Rmr,Ry(JIS), Rmax, RPc, Rk, Rpk, Rvk, Mr1, Mr2)
Graphic			Bearing area curve, Roughness profile, Primary profile
Filter			RC,PC-RC,Gauss,D-P
The sampling length(lr)			0.25, 0.8, 2.5mm
Assessment length(ln)			Ln= lr×n n=1~5
Sensor	Measuring method		skidded
	Stylus tip		Diamond, 90 cone angle, 5μmR
	Force		<4mN
	Skid part		hard alloy, skid radius of curvature: 40mm
	Traversing speed		lr=0.25, Vt=0.135mm/s
			lr=0.8, Vt=0. 5mm/s
			lr=2. 5, Vt=1mm/s
			Return Vt=1mm/s
Accuracy			Less than ±10%
Repeatability			Less than 6%
Power supply			Built-in Lithium ion battery, Charger :DC5V,800mA
Outline dimension			Main unit: 6453160mm drive: 2327115mm
Weight(main unit)			Around 380g
Working Environment			Temperature: - 20℃ ~ 40℃ Humidity: < 90% RH
Store and Transportation			Temperature: - 40℃ ~ 60℃ Humidity: < 90% RH

Standard Delivery

ITEM	QTY
SRT6680 Host	1 PC
Sensor TS110	1 PC
Calibration block and bracket	1 PC
Bracket for Calibration Block	1 PC
Height adapter	1 PC
Power Charger & USB Cable	1 PC
PC Software	1 PC
User manual	1 PC
Instrument case	1 PC
Warranty	1 Year
