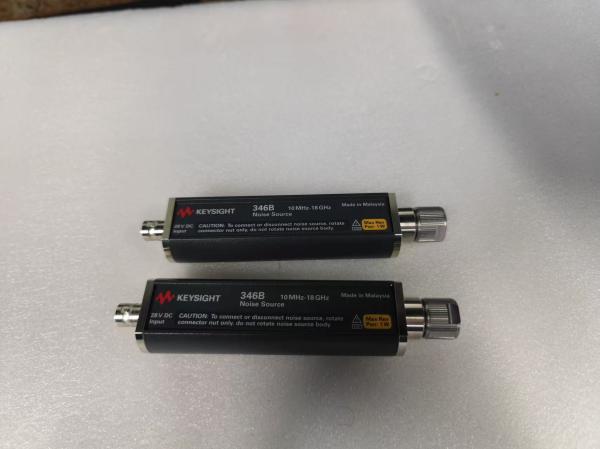

Keysight Agilent 346B Noise Source 10 MHz to 18 GHz nominal ENR 15 dB
Description of Keysight Agilent 346B Noise Source 10 MHz to 18 GHz nominal ENR 15 dB
The Keysight 346B noise source is the ideal companion to Keysight's noise figure solutions. Since it is broadband (10 MHz to 18 GHz), it eliminates the necessity for several sources at different frequency bands. The low SWR of the noise source reduces a major source of measurement uncertainty, which are reflections of the test signals. Add special option H01 for high ENR (21 dB typical) to measure high noise figure devices, or option H42 for measuring Direct Broadcast Satellite (DBS) low noise block converters.
Specification of Keysight Agilent 346B
ENR Range:
14 to 16 dB
ENR Automatic Download:
No
Excess Noise Ratio (ENR):
14-16 dB
Frequency Range:
10 MHz to 18 GHz
Maximum Frequency:
18 GHz
Minimum Frequency:
10 MHz
Minimum Frequency Range:
10 MHz
Temperature Compensation:
No
Type:
Noise Source
Works with:
NFA, ESA-E Series, PNA-X, PSA-Series, X-Series (PXA, MXA, EXA, CXA)
List of Options OF 346B
| 001 | Type N (male) connector |
| 002 | APC-7 Connector |
| 004 | Type N (female) connector |
| 100 | 3.5 mm (M) Connector |
| 1BN | Military Standard 45662A Calibration Certification |
| 910 | Additional operating and service manual |
| H01 | APC 3.5(m) connector with 21 dB nominal ENR |
| H10 | NPL calibrated transfer standard |
| H13 | LAB STD CAL |
| H42 | DBS waveguide adapter and nominal ENR 5 dB |
| H71 | Type N (male) connector with 21 dB nominal ENR |
| H72 | APC-7 connector with 21 dB nominal ENR |
| H73 | Type N (female) connector with 21 dB nominal ENR |
| R-50C-011-3 | Agilent Calibration - 3 years |
| R-50C-011-5 | Agilent Calibration - 5 years |
| R-50C-016-3 | ISO 17025 Compliant Calibration - 3 years |
| R-50C-016-5 | ISO 17025 Compliant Calibration - 5 years |
| R-50C-021-3 | ANSI Z540-1-1994 Calibration - 3 years |
| R-50C-021-5 | ANSI Z540-1-1994 Calibration - 5 years |
| R-51B-001-3C | Return to Agilent Warranty - 3 years |
| R-51B-001-5C | Return to Agilent Warranty - 5 years |
| R-51B-001-C | Return to Agilent Warranty - 1 year |
| RMKT | Agilent Refurbished Product (Do Not Use - Certiprime Option) |
FAQ:
1.Can you ship order to Canada or Australia?
Yes,we can .We send orders worldwide.
2. What delivery method do you use? and delivery time?
We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.
3. What is your payment term?
100% T/T payment before shipment.
4. How can I ask any other question?
You can contact us online or leave us messages below.
|
