| Categories | Fiber Laser Welding Machine |
|---|---|
| Brand Name: | QUESTT |
| Model Number: | QA-AC1000 |
| Certification: | CE ISO |
| Place of Origin: | China |
| MOQ: | 1 |
| Payment Terms: | T/T, Western Union, |
| Supply Ability: | 3000 sets per year |
| Delivery Time: | 7 days |
| Packaging Details: | wooden case |
| Warranty: | 1 Year |
| Wavelength: | 1064nm |
| Laser type: | fiber laser |
| Max. output power: | 1000W |
| Power supply: | 220v/50/60Hz |
| After-sales service provided: | Engineers available to service machinery overseas |
| Cooling system: | Air Cooling |
| Application: | Laser Welding Machine |
| Company Info. |
| Wuhan Questt ASIA Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
Air cooling laser welding cleaning machine
Features

Parameters
| Model | QA-LWF800A | QA-LWF1200A | QA-LWF1500A |
| Average output power | 800W | 1200w | 1500w |
| Power Consumption | 2500w | 4500w | 5500w |
| Operation Mode | CW/Modulate | ||
| Max Frequency | 20KHz | ||
| Output Power Stability | ±3% | ||
| Red Laser | Yes | ||
| Terminal Type | QBH | ||
| Delivery Cable Length | 10M | ||
| Power Supply | 1 PH 220V 50/60Hz | ||
| Cooling | Air-cooled | ||
| Operation Temperature | -10-40 degree | ||
| Max Depth of welding | 2mm | 3mm | 4mm |
| Cleaning range | 1-20mm | ||
| Cutting thickness | 0.2mm | 0.3mm | 0.5mm |
| Machine Net Weight | 50kg | 55kg | 58kg |
| Machine Gross Weight | 66kg | 70kg | 73kg |

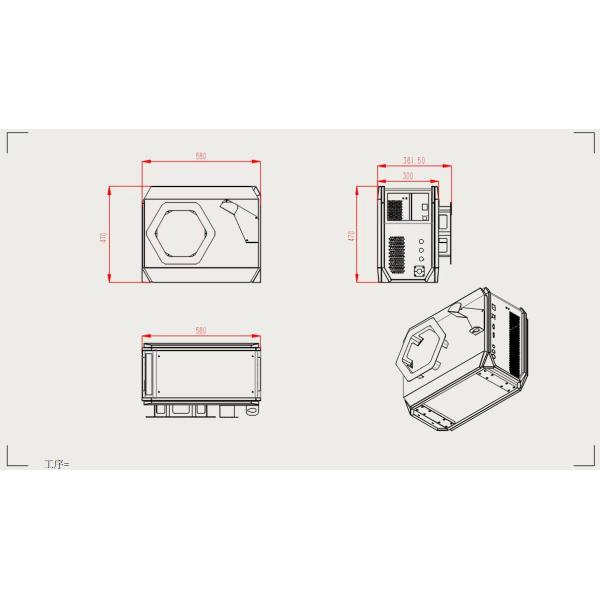

| Machine dimension | 700*400*700mm | 700*400*700mm | 700*400*700mm |
Main parts pictures
| Name | Pictures |
Max laser source 100,000 hours lifetime and can choose other brand laser source according to customer’s requirement | ![]() |
Wire feed mechanism The machine with automatic wire feeding. The light spot can be adjusted and the max wire diameter can reach 1.6mm. | ![]() |
Welding head Lightweight and flexible, 3 in 1 welding, cleaning and cutting | ![]() |
Samples

|
