Automatically Control Magnetic Stripe Laying Machine Reliable Operation YMSL-1000

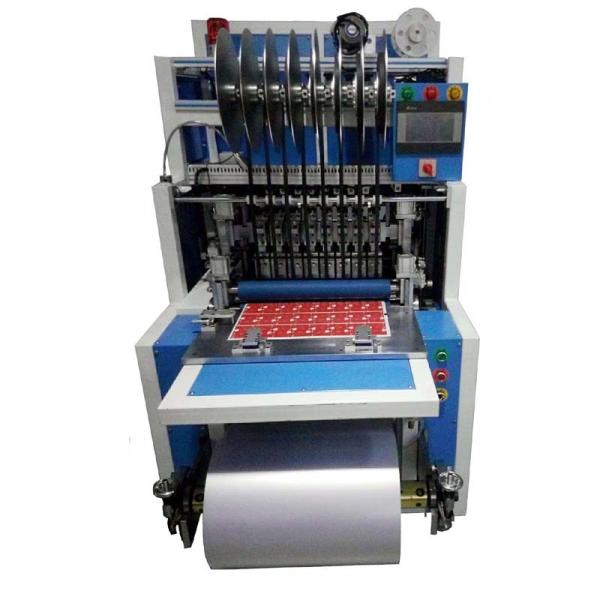

Automatic Magnetic Stripe Laying Machine YMSL-1000

1. Functional Introduction of Automatic Magnetic Stripe Laying Machine YMSL-1000

The machine is designed to lay the magnetic stripe onto the plastic sheets or film rolls (such as PVC and PET) by heating and pressurizing in a precise and firm way. It has three material feeding and collection modes: roll-to-sheet, roll-to-roll or sheet-to-sheet. The whole process can realize automatic operation to ensure stable and reliable operation. It can lay both ordinary and transferable magnetic stripe.

2. Key futures of Automatic Magnetic Stripe Laying Machine YMSL-1000

1. The system is automatically controlled by PLC program with friendly man-machine interface;

2. Sheet feeding, speed and film moving length are controlled by servo motor;

3. Rolling wheel clamping devices are applied to ensuring neat and precise mounting of magnetic stripe. The air cylinder pressure is adjustable; Automatic tension control system is applied in material feeding to ensure that the film roll conveying is kept smooth and even in tension.

4. The film cutting unit is driven by air cylinder to ensure reliable operation;

5. Magnetic stripe back foil can be automatically collected by waste system.

6. Air shaft loading system is applied to make loading and unloading of film roll easier and more convenient;

7. The heating temperature control is by heating tube with imported temperature probe and temperature control module for accurate temperature control (±0.5℃).

8. Each single magnetic stripe laying head can be adjusted in temperature and pressure.

3. Technical Parameter of Automatic Magnetic Stripe Laying Machine YMSL-1000

Main Technical Parameters
