Easy To Operate Software Control Hydraulic Pipeline Paywelder With Power Station

Easy To Operate Software Control Hydraulic Pipeline Paywelder With Power Station

Easy To Operate Software Control Hydraulic Pipeline Paywelder With Power Station
Easy To Operate Software Control Hydraulic Pipeline Paywelder With Power Station
Categories Paywelder Machine
Place of Origin: Jiangsu, China
Brand Name: WINCOO
Price: $116,800.00/sets 1-99 sets
Condition: New
Warranty: 1 Year
Applicable Industries: Manufacturing Plant, Construction works
Weight (KG): 13000
Showroom Location: None
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2022
Warranty of core components: 1 Year
Core Components: Engine, Gearbox, Motor, Pump
UNIQUE SELLING POINT: High operating efficiency
Product name: Sandblasting tractor
Application: Pipeline cleaning machine
After-sales Service Provided: VIDEO SUPPORT
Keywords: Paywelder Machine
Name: Paywelder Machine
Contact Now
Company Info.
Wincoo Engineering Co., Ltd.
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Easy To Operate Software Control Hydraulic Pipeline Paywelder With Power Station

WINCOO ENGINEERING CO.,LTD
Wincoo Engineering Co., Ltd (WINCOO) is engaged in bringing the most suitable solutions/equipment for client, fabricators, EPC/C companies on pipe fabrication, tank construction, pipeline construction, industrial production lines, clean energy project and other industrial field.

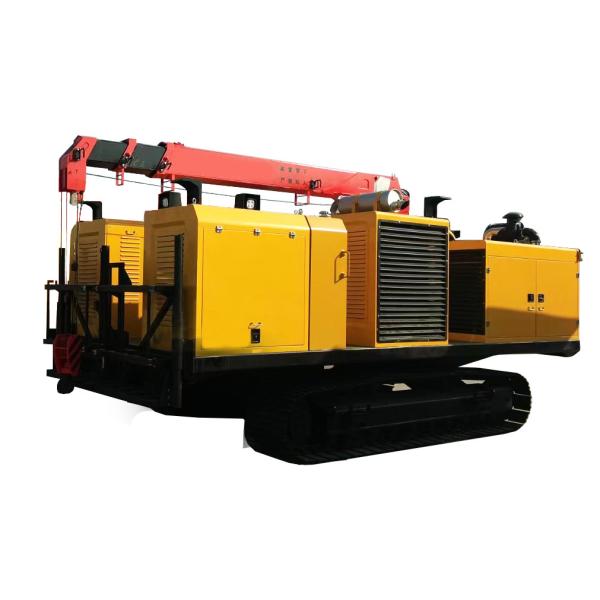

Sandblasting Tractor is designed for construction of pipe joint, which is used for automatic derusting of pipe joint. The machine is suitable for different working environment (plateau, mountain, desert, scarification, canals and elevations, etc.), it has the ability of self-walking and self-generating, and it provides and stores compressed air, since the integration ability of sand blasting derusting operation parameters can be preset and real-time adjustment, abrasive dust and automatic recovery and separation, and can satisfy their requirements of lifting function.
The machine is an addition to the HG series of mobile power stations with sand blasting machine.
Product Features
1, Sand spraying walking device adopts double sand spraying head to improve efficiency.
2, The special design of special sandblasting head is adopted to ensure the recycling and utilization of abrasive.
3, The sandblasting walking device adopts the straight and inserted clamping structure, which is easy to install.
4, Working with two heads at the same time, fast and efficient;
5, Intelligent software control, one-click operation, simple and easy to use;
6, Parameter input, adjustable working mode, flexible and convenient;
7, Negative pressure recovery, 100% dust recovery, safety and environmental protection;
8, Good rust removal effect, Sa2.5 level above;
9, Steel sand recovery and recycling, reduce engineering costs, economic and practical
Product Parameters
Model
HGP125
Operating weight
16.5t
Dimensions of transportation(L×W×H)
7290×2800×3290 mm (mm)
Average ground pressure
35 kPa
Minimum ground clearance
490mm
Max. climbing angle
25° (no-load)
Applicable environment
Accept -50℃～ +65℃ Applicable environment,elevation 3000m the following environment
Engine
Brand
cummins
Rated power
132kw
Rated speed
2500rpm
Walking system
Theoretical speed
I shift
0 ～ 2.6 km/h CVT
II shift
0 ～ 5 km/h CVT
Track width
600mm
Number of track rollers
10×2
Track gear height
50mm
Crane system
Modle
Straight arm crane
Moment of force
10.5tm
Max.lift weight
5T
Rotary
360°
Sandblasting system
Number of nozzles
2
Working materials
Steel emery,Quartz sand,Regular fused alumina
Rated atmospheric pressure
0.6-0.8
Derusting grade
Grade Sa2.5 or above
The scope of work
50-600mm continuously adjustable
Sand loading
≥ 260 kg
Compressor
Rated Output
12.2 m3 /mi
Rated discharge pressure
1.0 MPa
Product Major Component

Sandblasting derusting mainly consists of sandblasting machine, sandblasting walking device and control system.
Sandblasting and derusting refers to the recycling of abrasive materials, dirt and dust produced by descaling in the process of sandblasting, without polluting the environment.
Abrasive recycling, no loss, protection of the environment and the health of operators. Due to the impact of the abrasive and cutting function, improved mechanical properties on the surface of the pipe, pipe fatigue resistance increase, increase the adhesion and coating on the surface of the pipeline, to extend the durability of the coating on the surface of the clear, impurity, noise and oxide layer at the same time, the media surface coarsening, reduce the residual stress on the surface of the base material, improve the surface hardness of base material.
Product Photos
Wincoo Engineering Co., Ltd (WINCOO) is engaged in bringing the most suitable solutions/equipments for client, fabricators, EPC/C companies on pipe fabrication, tank construction, pipeline construction,industrial production lines, clean energy project and other industrial field.

Our Services & Strength
We have ability of providing workable solutions to support clients to be awarded with shorter project execution time, fewer man-hour cost and higher efficiency construction/fabrication method and better quality during phase of project bidding.

Based client’s facility/site space availability, we are able to study/design and present matched configurations on project schedule, quality, cost and productivity to guarantee production pace is accordance with project requirement.

To support project execution, we are always ready to work as fireman to give prompt supply on project materials from different consumables, tools, equipments/machines to special merchandise. With flexibility, we are also glad to perform as procurement agent in China to seek required supply resources.
