| Categories | Cable Tightening Device |
|---|---|
| Place of Origin: | China |
| Brand Name: | MARSHINE |
| Certification: | CE, ISO |
| MOQ: | 1PC |
| Packaging Details: | Wooden Box, Wooden Pallet |
| Delivery Time: | 15-30DAY |
| Payment Terms: | TT,LC,WESTERN UNION |
| Supply Ability: | 2000PCS/Day |
| Model Number: | JHW-1000 |
| Price: | US$10-US$200 |
| Rated Load: | 1~3t |
| Material: | Steel |
| Max Length(mm): | 1210-2000 |
| Min Length(mm): | 410-510 |
| Transport Package: | Carton Box, or as Your Requirement |
| Specification: | 3.4, 4.5, 6.5KG |
| HS Code: | 8467890000 |
| Type: | Tightener |
| Customized: | Non-Customized |
| Condition: | New |
| Feature: | Antimagnetic |
| Apply: | Tightening |

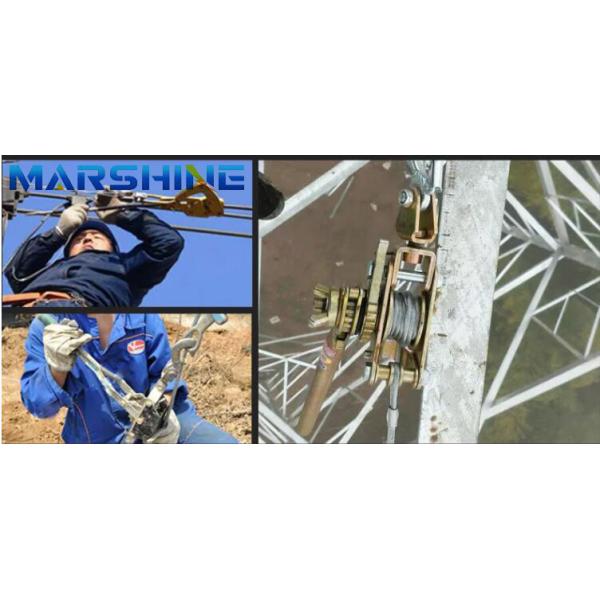

Ratchet Puller Basic Construction Tools Hand Cable Puller For
Tightening Wire
Features:
1. It has small size and light weight and convenient collection and easily carried. Its ability on operate can play its role even in a narrow place.
2. The ratchet puller is made by high quality of Taiwan galvanized wire rope and aluminum alloy pressure head. It's strong and wearable, not fall off.
3. It is made by high tensile steel plate and the structure is used in high quality integral structure of carbon steel, then matching with the high density gear, which can rotate 360 degrees direction. The controlling keying can forward or backward turn. It is attached automatic braking device to save effort. It is suitable for electric power, telecom high homework. It is powerful and not easy to break.
4. With high tensile steel hook with latch, the strength gets greatly improved.
5. Material: High Tensile Carbon Steel
6. Constructions: heat treatment and high temperature treatment (Quenched and Tempered)
7. Finish: color zinc plated.

Main Specification
| Model Type | Rated Load(KN) | Max Length(mm) | Min Length(mm) | Weight(kg) |
| JHW-1000 | 10 | 1210 | 410 | 3.2 |
| JHW-1500 | 15 | 1500 | 480 | 4.2 |
| JHW-1500A | 15 | 2000 | 480 | 4.7 |
| JHW-2000 | 20 | 1500 | 480 | 4.8 |
| JHW-3000 | 30 | 1500 | 510 | 5.2 |











|
