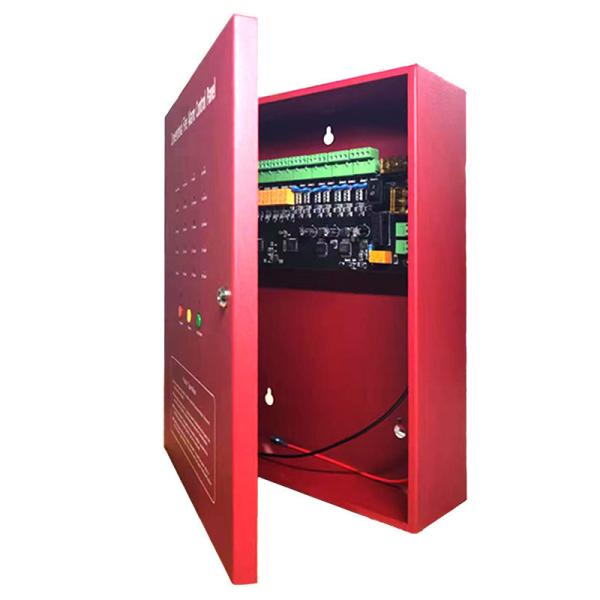

Independent 8 Zone Conventional Fire Alarm System with Comprehensive Auxiliary Devices

Independent 8 Zone Conventional Fire Alarm System with Comprehensive Auxiliary Devices

Independent 8 Zone Conventional Fire Alarm System with Comprehensive Auxiliary Devices
Independent 8 Zone Conventional Fire Alarm System with Comprehensive Auxiliary Devices
Categories Conventional Fire Alarm System
Brand Name: XHA
Model Number: XHA1008
Certification: CE
Place of Origin: China
MOQ: 1PCS
Price: negotiable
Payment Terms: T/T, Western Union,
Supply Ability: 500PCS/Month
Delivery Time: 3 Working days
Packaging Details: 370mm*440mm*100mm
Connected: Wired Conventional 8 zone Smoke alarm panel
Capacity: Max 30 conventional detectors in one zone
Back Up Battery: 1*12V sealed lead acid
Size: 370mm*440mm*100mm
Power supply: 90-270VAC
Material: Metal
Types of Smoke Detectors: Photoelectric Smoke Detector
Signal Transmission: Wired
Transport Package: Carton
Alarm Output: Relay output
Aplications: Conventional alarm system
Contact Now
Company Info.
Shenzhen Xinhe'an Technology Co., Ltd.
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Independent 8 Zone Conventional Fire Alarm System with Comprehensive Auxiliary Devices

8 Zone Conventional Fire Alarm Controller For Fire Safety Alarm System





Introduction

The information provided in this manual covers the Master and Slave fire alarm control panel. The panel range is designed to
meet the requirements of EN54 Parts 2 & 4.
A comprehensive range of auxiliary devices is available to operate with the fire control panels including optical, ionization,
photoelectric, photoelectric-thermal and heat detectors.
Each of the system components has been specifically designed to operate as part of the system. This provides assurance
that the control panel, smoke detectors, interface devices and the ancillary components are all fully compatible with one
another and that the full range of system functionality is supported by each device.
The fire alarm control panels (8 Zones) provide all of the sophisticated features required of a leading edge conventional fire
alarm system along with the simple operation and efficient installation methods demanded by both installers and building
users


Product Features

8 conventional input zones.
Housed in a 370mm W x 440mm H x 100mm D metal enclosure.
Each zone can be connected with 30 conventional fire detectors. Each panel has external devices control output points, Through the points, the panel can control such external devices as bell, siren, flame detector, beam detector etc.
Dedicated alarm and trouble relays.
Enclosure supports 1 12V, 4.5Ah backup batteries.
The panel can be used independently or connect by RS485.
1 RS485 can be able to connect the other panel.

Specification


Primary AC120VAC 50/60 Hz Power supply rating
240VAC 50/60 Hz
Power supply rating2 Amps @ 24VDC
Maximum Battery Charging Current0.90 Amps @ 26VDC
Initiating Device Circuits ZonesAlarm Zone 2/4/8/16
Normal Initiating Operating Voltage22VDC, Maximum 26VDC, regulated
Normal Monitor Current<50mA
Alarm Current<150 mA
Short Circuit Initiating Current (per zone)35mA Maximum
Maximum Initiating Resistance (per zone)10 ohms
Initiating End-of-Line Resistor4K7 ohms, 1/2W 5%
Standby Detector Current (per zone)4mA maximum
Maximum Detector Count (per zone)30 detectors
Initiating Cabling Type18AWG Twisted Shielded pair (14 – 18 AWG)
Detector Base Impedance430 ohms
Fault Relay rating2A & 30VAC, resistive
Alarm( Auxiliary ) Relay rating2A & 30VAC, resistive


Connection Diagram




Service


1. OEM &ODM service.
2. Provide technical support and after-sale service.
3. 1 year warranty.
4. Normally 15 working days lead time.
5. Welcome sample order.
