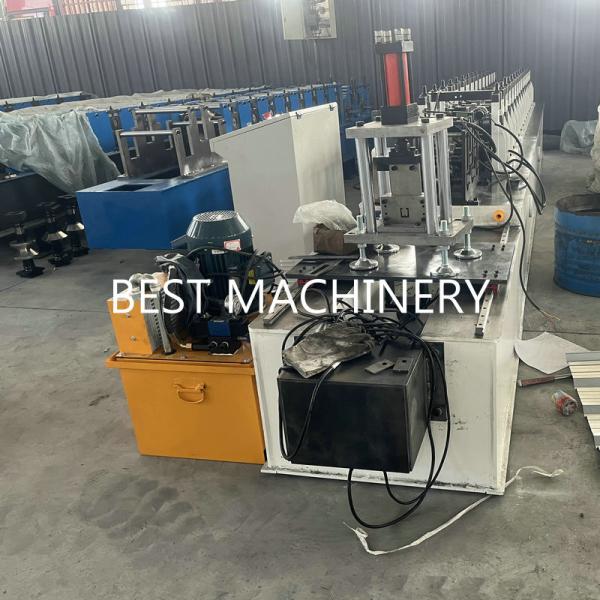

High Speed Flying Cutting Ppgi C Stud Roll Forming Machine Servo Motor Driven

High Speed Flying Cutting Servo Motor Driven C Stud Cold Roll Forming Machine

Light Gauge Roll Forming Machine, it is a kind of new building materials, with the development of modernization construction.Light Gauge Roll Forming Machine are widely used terminal building,car depot,station,Amusement Park,mall,factory,office building,old building renovation, indoor decoration set,ceiling ,etc.Light Gauge Roll Forming Machine is with the features of lightweight, highstrength, waterproof,shockproof, dustproof,soundproof,sound absorption,constant temperature;also with advantages of short limit time and easy installation.

Machine Component

1. DECOILER
(1) Max. Width: 500mm
(2) Inner Diameter: Φ450 – Φ550 mm
(3) Out Diameter: 1500 mm
(4) Max. Loading Capacity: 3000 kgs

2. ROLL FORMING MACHINE
(1) Material Thickness: 0.5-1.0mm PPGI and GI

(2) NO. of roller Stations:8groups
(3) Material for Rollers:Cr12 steel polished and coated with chrome HRC58-62°
(4) Material for shaft: high grade 45# steel polished and coated with chrome HRC58-62°

(5) Diameter of shaft: 60mm

(6) Frame panel : casting type

(7) Bottom frame: 36# H-section steel
(8) Motor Power: 3kw

(9)Driven type: chain

(10)Speed: 8-12m/min

3. CUT-OFF DEVICE

(1)Material for Cut-Off Modular:Cr12 steel after treatment

(2)Hardness for Heat Treatment:HRC58 – 62°

(3)Cut-Off Type: Mould Cutting

(4)Motor for Hydraulic Stand: 3kw

4.PLC CONTROL BOX
(1) Type: PLC Frequency Control System with touch screen
(2) PLC Brand: Delta

(3) Encoder Brand: Omron

(4)Length Error: ±2mm

(5)Language: English and Chinese

(6)Voltage: 380v/50HZ, 3Phase (it depends on customer requirement)

5. HYDRAULIC PUMP STATION
(1) Oil type: 46# hydraulic oil
(2) Pump brand: China brand

Advantage of the service:

1. Provides engineering drawing design services

2.Provide machine customization service

3.Remote video service

4.Engineer on-the- spot installation service

5. Help customers booking shipping service

6.Help customers purchase raw materials service

After-sales service:

1.Payment Term: 30% paid by T/T as down payment, the rest 70% after inspection by buyer in seller’s factory while before delivery.

2.Delivery Time: We guarantees the equipment will be ready for shipment within 30 working days after receipt of deposit .

3.After sale Service: We could send technician to your country to install machine if you need. The buyer need to pay for all the cost, including: visa, round trip tickets, accommodation, salary of USD 100~120 per day.

4.Warranty: 2years
