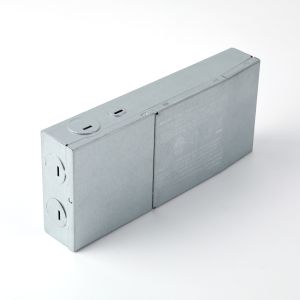

Class 2 Iron Case Dimmable LED Transformer With 200*85*37mm 20W 24V Constant Voltage

Categories Triac Dimmable Driver
Brand Name: KSPOWER
Model Number: ZH-EAC20W12-T
Place of Origin: China (Mainland)
MOQ: 5 pieces
Price: $13.60/pieces 5-499 pieces
Payment Terms: T/T,Western Union
Delivery Time: 15-20 days
Packaging Details: Brown box and Carton
Warranty(Year): 5-Year
Lighting solutions service: Lighting and circuitry design
Output Power: 20W
Output Type: Single Phase
Input Voltage: 100V-120Vac & 200-240Vac
Output Frequency: 50/60Hz
product name: continuous smooth led transformer 12v60w dc led driver
efficiency: >90%
Protections: OCP, OVP, SCP, OTP
warranty: 3 years
certification: ETL cETL CE ROHS Class2
dimension: 200*85*37mm (L*W*H)
material: Iron case
color: Silver, Black, White, Blue, Gray or custom.
Dimming mode: Traic /Phase-Cut Dimmable
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Class 2 Iron Case Dimmable LED Transformer With 200*85*37mm 20W 24V Constant Voltage

Class 2 Iron Case Dimmable LED Transformer With 200*85*37mm 20W 24V Constant Voltage

Products Description:
The phase dimmable led driver is one 120VAC Input voltage, 40 Watt 24VDC / 12VDC output North America indoor junction box LED Driver certified to meet ETL/cETL Class 2 safety approvals. The Dimmable Power Supply use low profile iron case with junction box to enable easy installation makes led driver the power solutions for led tape/strip, modules, LED bar light. Featuring US Level VI energy efficiency standards of up to 90% and higher, IP20 environment Protection Rating, Constant Voltage LED Driver can use for indoor lighting and provide outstanding dimming peformance.
Features:
. Super compact IRON CASE
. ETL/cETL Class 2 RoHS
. IP20 - Indoor Use
. Auto-Reset Protection for input/output overvoltage protection, input/output overcurrent protection, over temperature protection, over power protection and short circuit protection
Features:
* 100-120Vac 60Hz & 200-240Vac 50Hz Input
* 12V/ 24V PWM Output
* Single Channel & Constant Voltage mode
* Enclosure With Junction Box
* ETL cETL Class2 CE Cert
* Enclosure: LISTED Enclosure with input and output wire
* For Forward & Reverse Phase, MLV, ELV
* High Power Factor, PF≥0.95
* Full Dimming Range:0-100%
* Flicker-Free
* Continuous & Smooth & Stable
* Protections: OCP, OVP, SCP, OTP
*For Dry Indoor Location
* 3 Years Warranty
Specification:
Model No.
Output Power
Output Voltage
Output Current
Efficiency
Dimension
KSE-24W
20W
12V/24V
1.7A/0.84A
≥88%


(7.9*3.34*1.45)inch
200*85*37MM
KSE-40W
40W
12V/24V
3.34A/1.67A
≥88%

KSE-60W
60W
12V/24V
5A/2.5A
≥88%

KSE-80W
80W
24V
3.33A
≥88%

KSE-96W
96W
24V
4.0A
≥88%




Dimming TypeSeriesPowerModel
(xx=output voltage)
Output voltageOutput currentInput voltagePFLocationSize
Triac/Phase-cutET20WZH-EAC20W12-T12V1.7A100-120V 60Hz&200-240V 50Hz≥0.95Dry/Damp/Wet200*85*37mm
ZH-EAC20W24-T24V0.84A
40WZH-EAC40W12-T12V3.34A
ZH-EAC40W24-T24V1.67A
60WZH-EAC60W12-T12V5A
ZH-EAC60W24-T24V2.5A
80WZH-EAC80W24-T24V3.33A
96WZH-EA100W24-T24V4A
