| Categories | Capsule Slip Ring |
|---|---|
| Brand Name: | GUREN |
| Model Number: | WX8.5-8PS |
| Certification: | ISO9001.CE.ROHS |
| Place of Origin: | China |
| MOQ: | 1 |
| Price: | ＄19-199 |
| Payment Terms: | D/A,D/P,T/T |
| Supply Ability: | 5K units/week |
| Delivery Time: | 3 weeks ARO |
| Packaging Details: | Standard/On Request |
| Outer Diameter: | 8.5mm |
| Weight: | 72g |
| Max Speed: | 100RPM per minute |
| Breakaway Torque: | 8 mN·m |
| Running Torque: | 0.5 mN·m |
| IP Rating: | IP40 |
| Company Info. |
| Shenzhen Guren Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
The WX8.5-8PS low-power micro electric slip ring is only 13.8mm long and can be easily embedded in the narrow cavity of commercial equipment. The gold-gold contact can effectively ensure the signal transmission without attenuation, and the low torque of 0.06N·m reduces the motor energy consumption by 30%.
product features
1. Ultra-micro flangeless design: Extremely reduces the
installation space.
2. Military-grade gold-plated contacts: Ensure ultra-low resistance
fluctuations and ensure more stable transmission.
3. Weak signal transmission: Can transmit weak control signals and
weak currents.
4. Service life guarantee: Adopt gold-gold contact points combined
with military technology, with better durability.
5. The product is stable and reliable, suitable for civilian and
commercial fields such as monitoring equipment, precision
instruments, and small automation.
parameters
Parameter name | Parameter Value | |
Power | Signal | |
Dielectric strength | 300VCA@50Hz,60s | |
Insulation resistance | ≥300MΩ/300VDC | |
Dynamic resistance change value | ＜10mΩ | |
Rated voltage | 0～48VDC/VAC | |
Wire Specifications | AWG30# Teflon wire | |
Wire length | Rotor 150mm; stator 200mm (adjustable as required) | |
Operating temperature | -20℃～+80℃ | |
Operating humidity | 0～85%RH | |
Protection level | IP41 | |
Shell material | Engineering Plastics | |
Rotational torque | 0.05N.m,+0.01N.m/6-way | |
Service life | 500,000 rpm | |
product size drawing

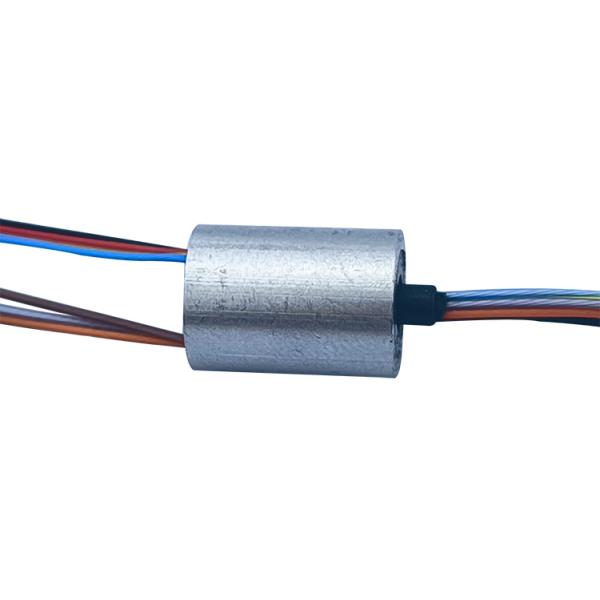

Product Pictures
Application
WX8.5-8PS low power micro electric slip ring is mainly used in UAV, stabilizer, model aircraft, small aircraft, micro robot, micro CCTV, small high speed ball, micro PTZ, small measuring instruments, electric toys and other equipment with narrow installation space.
|
