| Categories | Capsule Slip Ring |
|---|---|
| Brand Name: | GUREN |
| Model Number: | WX7.9-4PS |
| Certification: | ISO9001.CE.ROHS |
| Place of Origin: | China |
| MOQ: | 1 |
| Price: | ＄19-199 |
| Payment Terms: | D/A,D/P,T/T |
| Supply Ability: | 5K units/week |
| Delivery Time: | 3 weeks ARO |
| Packaging Details: | Standard/On Request |
| Outer Diameter: | 7.9mm |
| Circuits: | 4-way |
| Weight: | 62g |
| Operating Speed: | 0-100rpm |
| Breakaway Torque: | 5 mN·m |
| Running Torque: | 1 mN·m |
| Company Info. |
| Shenzhen Guren Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
| Attribute | Value |
|---|---|
| Outer Diameter | 7.9mm |
| Circuits | 4-way |
| Weight | 62g |
| Operating Speed | 0-100rpm |
| Breakaway Torque | 5 mN·m |
| Running Torque | 1 mN·m |

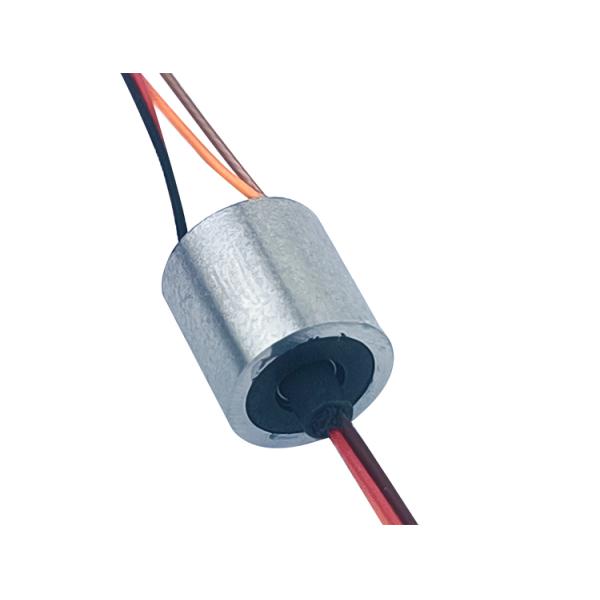

The WX7.9-4PS low-power micro conductive ring adopts gold plating technology, and the thickness of the super-hard gold-gold contact is more than 1μm. Compared with conventional gold plating, the wear resistance is improved by 100%, and the service life can exceed 500,000 revolutions, which can help solve the difficulties of signal rotation transmission of micro devices.
| Parameter Name | Parameter Value |
|---|---|
| Dielectric strength | 300VCA@50Hz,60s |
| Insulation resistance | ≥300MΩ/300VDC |
| Dynamic resistance change value | ＜10mΩ |
| Rated voltage | 0～48VDC/VAC |
| Wire Specifications | AWG30# Teflon wire |
| Wire length | Rotor 150mm; stator 200mm (adjustable as required) |
| Operating temperature | -20℃～+80℃ |
| Operating humidity | 0～85%RH |
| Protection level | IP41 |
| Shell material | Engineering Plastics |
| Rotational torque | 0.05N.m,+0.01N.m/6-way |
| Service life | 500,000 rpm |
WX7.9-4PS low-power micro conductive rings are used in consumer electronics, UAVs, stabilizers, aircraft models, small aircraft, micro robots, micro CCTV, small high-speed balls, micro PTZs, small measuring instruments and other industries. These low-power micro conductive rings are also called:
|
