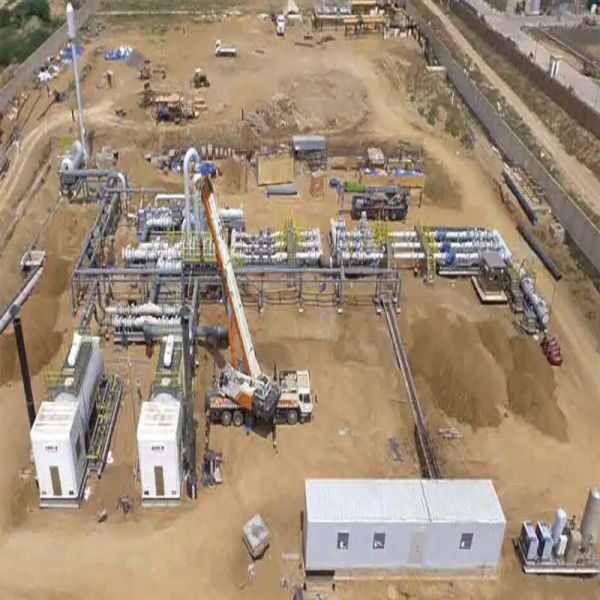

CUSTOM LNG TERMINAL FOR LIQUEFACTION NATURAL GAS

Short Description:

● Mature and reliable process
● Low energy consumption for liquefaction
● Skid mounted equipment with small floor area
● Easy installation and transportation
● Modular design

LNG terminal is an organic whole composed of many relevant equipment assemblies. Through the cooperation of these equipment, the LNG transported by sea can be stored in LNG storage tank and exported to users through certain process flow. These equipment include unloading arm, storage tank, low-pressure transfer pump, high-pressure transfer pump, carburetor, bog compressor, Flare Tower, etc.

Unloading arm

As the name suggests, the unloading arm is the mechanical arm that transfers LNG from the offshore transport ship to the storage tank through the corresponding pipeline. It is the first step for the LNG terminal to receive LNG. The difficulties to be overcome are low temperature cold insulation and omni-directional rotation without leakage. In addition to the unloading arm, the terminal shall also install a gas-phase return arm to prevent the risk of negative pressure in the tank of the transport ship during unloading.

Storage tank

Storage tank is the place where LNG is stored, and the selection shall be considered from the comprehensive factors such as safety, investment, operation cost and environmental protection. LNG storage tank is a large storage tank with atmospheric pressure and low temperature. The structural forms of storage tanks include single containment tank, double containment tank, full containment tank and membrane tank.

Low pressure transfer pump

Its function is to extract LNG from the storage tank and send it to the downstream device. It is an important equipment in the transportation system.

High pressure transfer pump

The function is to directly enter the LNG from the Recondenser into the LNG high-pressure transfer pump and deliver it to the carburetor after pressurization.

Carburetor

Its function is to vaporize liquid natural gas into gaseous natural gas, which is sent to the gas transmission pipe network after pressure regulation, odorization and metering. Generally, seawater is used as the vaporization medium.

Bog compressor

It is used for pressurization and gas transmission, that is, part of the evaporated gas generated in the storage tank is boosted by the compressor and enters the Recondenser for condensation, and then sent to the carburetor together with the exported LNG through the high-pressure export pump.

Flare Tower

The function of Flare Tower is to burn waste gas and adjust the pressure in the tank at the same time.

Professional Team

The Main Products

• Crude oil treatment equipment
• Wellhead treatment equipment
• Natural gas conditioning equipment
• Light hydrocarbon recovery unit
• LNG Plant
• Gas compressor
• Gas generator sets

Why Choose Us

We have established a strict quality, environment and occupational health and safety management system and have obtained ISO9001:2015 quality management system certification, ISO14001:2015 environmental management system certification, GB/T28001-2011 occupational health and safety management system certification. Moreover, we have received the "China Honored Brand for Excellent Quality and assured Service " certificate awarded by China Association for Quality Inspection, and our products have been awarded the title of "Sichuan Famous Brand" for six consecutive times.

On the basis of consolidating the domestic market, our products and services are exported to more than ten countries and regions in Asia, Europe and Africa, providing customers with high-quality, efficient and satisfactory services.

We are committed to becoming the leader of clean energy equipment industry in China!

Enterprise Culture

Our Service

After-Sales Service

 We provide accessories and operation manual, and guide customers to install and commission on site. If there are any problems in the use process, we will give video guidance and deal with them when necessary.
