| Categories | Road Construction Machinery |
|---|---|
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Home Use, Retail, Construction works , Energy & Mining |
| Showroom Location: | Canada, Turkey, United States, Italy, Brazil, India, Mexico, Kazakhstan, Uzbekistan |
| Video outgoing-inspection: | Provided |
| Machinery Test Report: | Provided |
| Marketing Type: | Hot Product 2024 |
| Warranty of core components: | 1 Year |
| Core Components: | PLC, Engine, Motor, Gear |
| Condition: | New |
| Application: | Ground compaction |
| Brand Name: | BE-Focus |
| Model Number: | C90T, FCP200 |
| Place of Origin: | Henan, China |
| Power: | 9.6KW |
| Dimension(L*W*H): | 965*600*1370mm |
| Weight: | 150 kg |
| Warranty: | 1 Year |
| Engine: | 9.6kw, Gasoline/Diesel/Electric |
| UNIQUE SELLING POINT: | High operating efficiency |

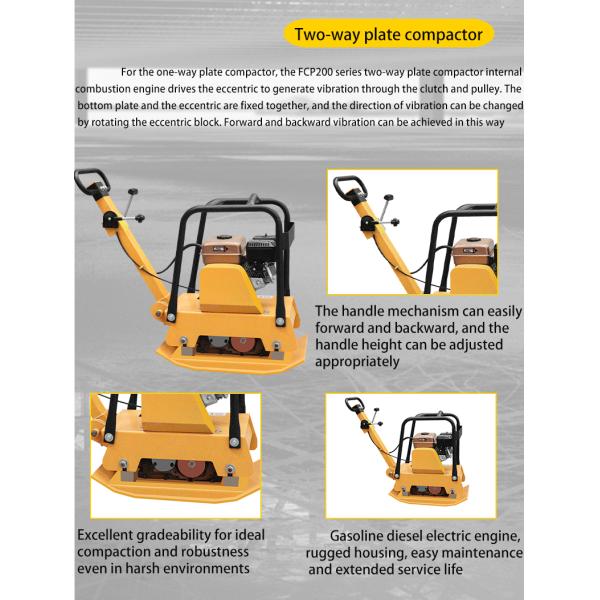

| Product Name: | Vibratory Plate Compactor |
| Engine type: | Air-cooled 4-cycle Gasoline |
| System: | Mechanical control |
| Speed: | 22m/ min |
| Plate Size mm(in): | 600*890mm |
| Max Speed: | 3600rpm |
| Fuel Tank: | 5.5L |
| Vibrating Frequency: | 2800-5500vpn |
| working Area: | 500*520 mm |

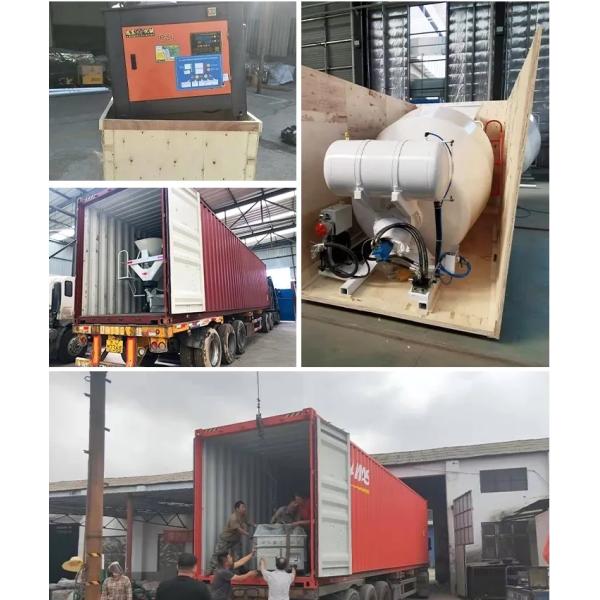

| Packaging Details: | Wooden box packaging |
| Supply Ability: | 1000 Set/Sets per Month |
| Price: | $268.00/sets 1-4 sets |
| MOQ: | 1 set |
| Company Info. |
| Henan Beifuke Machinery Equipment Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |


Metric | ||||
model | C90T | FCP 200 | ||
type | single-direction vibratory plates | reversible vibratory plates | ||
tamping depth | 30 cm | 30 cm | ||
power type | gasoline/diesel | gasoline/diesel | ||
vibration intensity | 15kn | 15kn | ||
vibration frequency | 2800-5500vpn | 5500vpn | ||
gradeability | <25° | <25° | ||
walking speed | 15-30 m/min | 15-30 m/min | ||
working area | 500*520 mm | 370*690 mm | ||
weight | 90 kg | 126 kg | ||
size | 1050*500*520 mm | 1050*370*690 mm | ||








|
