| Categories | EPS Pre Expander |
|---|---|
| Brand Name: | PINSHENG |
| Model Number: | PSPEC90 |
| Place of Origin: | Zhejiang China |
| MOQ: | 1 |
| Price: | negotiation |
| Payment Terms: | T/T LC |
| Supply Ability: | 10pcs per month |
| Delivery Time: | 6-10days |
| Expansion Chamber Diameter: | 900mm |
| Expansion Chamber Volume: | 1.2m3 |
| Port: | SHANGHAI/NINGBO |
| Warranty: | 1 year |
| Overall Dimensions: | 4700x3000x3200 mm |
| weight: | 1500 |
| Drainage: | 20mm |
| Company Info. |
| NINGBO PINSHENG MACHINERY CO.,LTD |
| Verified Supplier |
| View Contact Details |
| Product List |

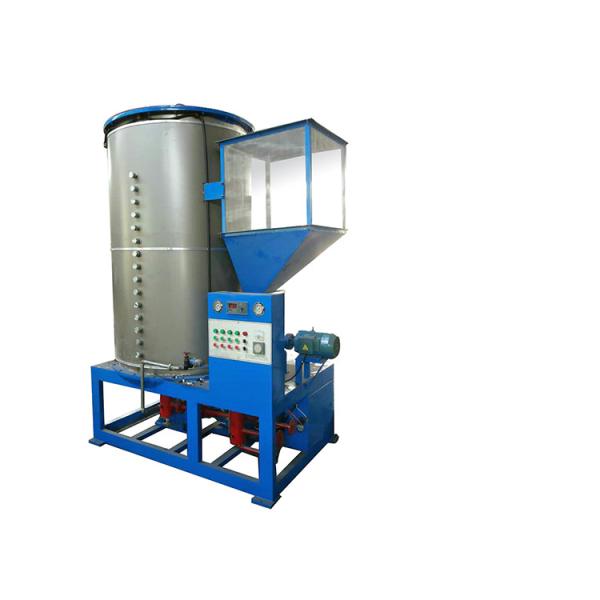

Main features:
a. The chamber surface is made by stainless steel with good shape and long life
b. The fuidized Bed Drier can be bought by customer solely
c. The twice pre-explander can pre-expand once or twice to enable the EPS density to be ideal state.
| Item | Unit | PSPEC90 | PSPEC120 | |
| Expansion Chamber | Diameter | mm | Ф900 | Ф1200 |
| Volume | m3 | 1.2 | 2.2 | |
| Useable volume | m3 | 0.8 | 1.5 | |
| Steam | Inlet | mm | Ф25 | Ф40 |
| Consumption | Kg/cycle | 100-150 | 150-200 | |
| Pressure | Mpa | 0.6-0.8 | 0.6-0.8 | |
| Compressed air | Inlet | mm | Ф25 | Ф25 |
| Pressure | Mpa | 0.6-0.8 | 0.6-0.8 | |
| Drainage | Condensation | mm | Ф20 | Ф20 |
| Connected load | Instaling power | Kw | 10 | 15 |
| Density | First expansion | g/L | 12-30 | 14-30 |
| Second expansion | g/L | 8-11 | 8-13 | |
| Overall size (LXWXH) | mm | 4700X3000X3200 | 4900X4700X3200 | |
| Weight | kg | 1500 | 1800 | |
| Room height required | mm | 5000 | 5000 | |
| Productivity | 15g/L | kg/h | 150 | 250 |
| 20g/L | kg/h | 200 | 300 | |
| 25g/L | kg/h | 250 | 410 | |
| 30g/L | kg/h | 300 | 500 | |
|
